Shop SQUARE D

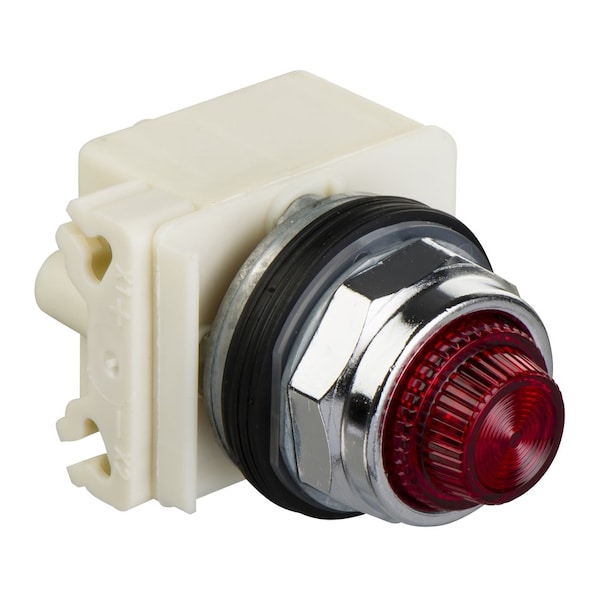

30mm push button, Type K, push to test pilot light, red LED light module, 120VAC/VDC, red glass lens, NEMA 4, 13

  • Mfr # 9001KT38LRR6
  • Zoro # G410865173
product price:
$
187.99
/ea
Free Shipping & Returns

Key Features

Lens Material
glass
Size
30 mm
Lens Type
domed
Height
70 mm
Width
54 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9001KT38LRR6
Zoro #
G410865173
UPC #
785901188667
Country of Origin
Mexico
Item
PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
Lens Material
glass
Lens Type
domed
Standards
EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, JIS C 852, JIS C8201-1
Shape of Signaling Unit Head
round
[Ith] Conventional Free Air Thermal Current
10A
Bulb Base
BA 9s
Overvoltage Category
class II IEC 61140
Operating Position
any position
Connections - Terminals
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Ip Degree of Protection
IP66 IEC 60529
Light Block Supply
direct 120 V AC/DC
Light Source Colour
red
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Cap/Operator or Lens Colour
red
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Bezel Material
metal
Shape of Screw Head
cross slotted
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Range of Product
Harmony 9001K
Shock Resistance
50 gn IEC 60068-2-27
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
[Ui] Rated Insulation Voltage
250 V 2)IEC 60947-1
[Us] Rated Supply Voltage
120 V
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
9001K
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Light Source
LED
Product or Component Type
push-to-test pilot light
Ambient Air Temperature For Storage
-40-70°C
Operating Mode
push-to-test
Protective Treatment
TC
Contacts Type And Composition
1 C/O

Description

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
