  8. 30mm push button, Type K, push to test pilot light, yellow LED light module, 120VAC, amber fresnel lens, NEMA 4, 13

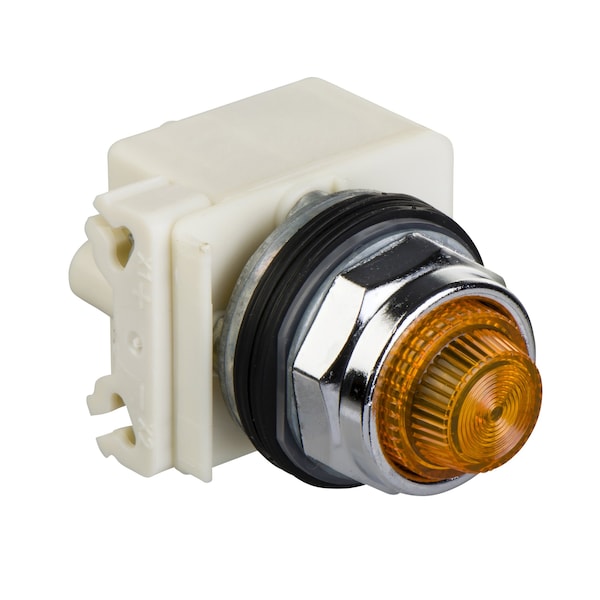

Square D 30mm push button, Type K, push to test pilot light, yellow LED light module, 120VAC, amber fresnel lens, NEMA 4, 13 9001KT1LYA31 - main

30mm push button, Type K, push to test pilot light, yellow LED light module, 120VAC, amber fresnel lens, NEMA 4, 13

  • Mfr # 9001KT1LYA31

  • Zoro # G610865164

product price:  $177.99
/ea
Free Shipping & Returns

Key Features

Lens Material
polycarbonate
Size
30 mm
Lens Type
fresnel
Standards
UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C 852, JIS C8201-1
Height
70 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KT1LYA31
Zoro #
G610865164
UPC #
785901464020
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
70 mm
Width
54 mm
Mounting Diameter
30 mm

Details

Item
PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
Lens Material
polycarbonate
Lens Type
fresnel
Standards
UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C 852, JIS C8201-1
Bulb Base
BA 9s
Overvoltage Category
class II IEC 61140
Operating Position
any position
Ip Degree of Protection
IP66 IEC 60529
Light Block Supply
via integral transformer 110...120 V AC 50/60 Hz 6 V)
Shape of Screw Head
cross slotted
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Ambient Air Temperature For Operation
-25-70°C
Light Source Colour
yellow
Connections - Terminals
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Cap/Operator or Lens Colour
amber
Range of Product
Harmony 9001K
[Us] Rated Supply Voltage
110...120 V
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Product or Component Type
push-to-test pilot light
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Contacts Type And Composition
1 C/O
Shape of Signaling Unit Head
round
Operating Mode
push-to-test
[Ui] Rated Insulation Voltage
250 V 2)IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10A
Protective Treatment
TC
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Supply Frequency
50...60 Hz
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Device Short Name
9001K
Bezel Material
metal
Light Source
LED
Shock Resistance
50 gn IEC 60068-2-27

Description

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
