  15. 30mm push button, Type SK, push to test pilot light, 120VAC/VDC white LED light module, white domed lens, NEMA 4, 4X

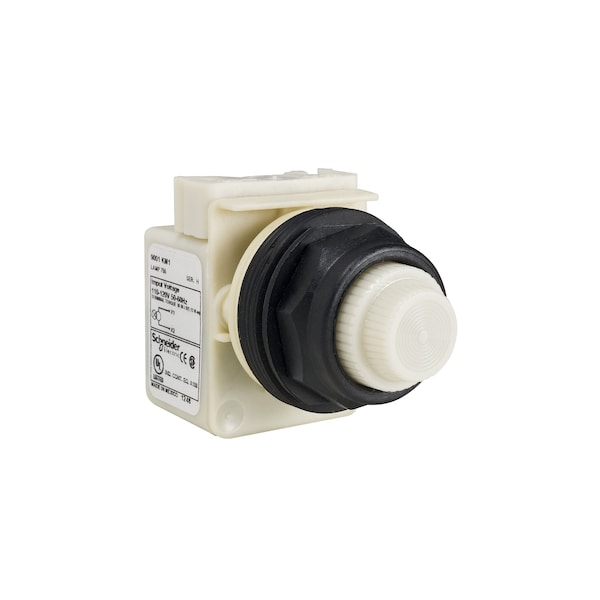

Square D 30mm push button, Type SK, push to test pilot light, 120VAC/VDC white LED light module, white domed lens, NEMA 4, 4X 9001SKT38LWW9 - main

30mm push button, Type SK, push to test pilot light, 120VAC/VDC white LED light module, white domed lens, NEMA 4, 4X

  • Mfr # 9001SKT38LWW9

  • Zoro # G610865157

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Lens Material
polycarbonate
Lens Type
domed plastic
Size
30 mm
Standards
EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-4, JIS C8201-1
Height
70 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKT38LWW9
Zoro #
G610865157
UPC #
785901792819
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
70 mm
Width
54 mm
Mounting Diameter
30 mm

Details

Item
PILOT LIGHT 120V 30MM TYPE SK +OTPIONS
Lens Material
polycarbonate
Lens Type
domed plastic
Standards
EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-4, JIS C8201-1
Ambient Air Temperature For Operation
-25-70°C
Bezel Material
plastic
Range of Product
Harmony 9001SK
Protective Treatment
TC
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Device Short Name
9001SK
Contacts Type And Composition
1 C/O
[Ith] Conventional Free Air Thermal Current
10A
Shape of Signaling Unit Head
round
Light Block Supply
direct 120 V AC/DC
Shape of Screw Head
cross slotted
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Operating Mode
push-to-test
[Ui] Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Bulb Base
BA 9s
Light Source
LED
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn IEC 60068-2-27
[Us] Rated Supply Voltage
120 V
Operating Position
any position
Ambient Air Temperature For Storage
-40-70°C
Cap/Operator or Lens Colour
white
Connections - Terminals
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Light Source Colour
white
Ip Degree of Protection
IP66 IEC 60529
Electrical Shock Protection Class
class II IEC 61140
Product or Component Type
push-to-test pilot light
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1

Description

PILOT LIGHT 120V 30MM TYPE SK +OTPIONS
