  8. Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, LED red, 220.240V

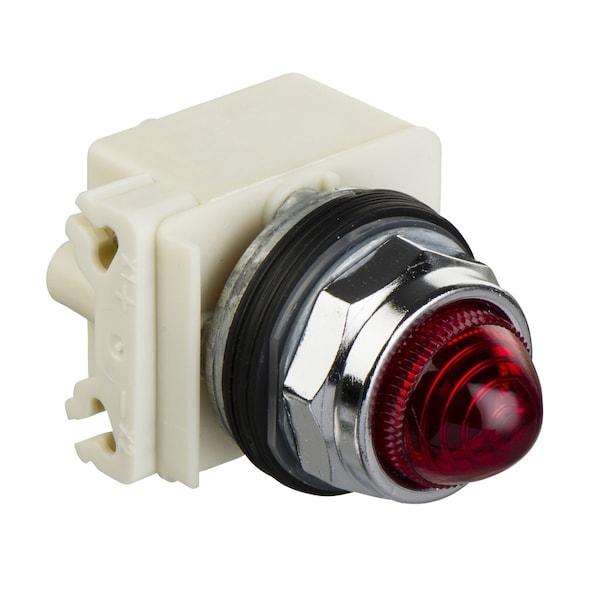

Square D Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, LED red, 220.240V 9001KP7LRR9 - main

Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, LED red, 220.240V

  • Mfr # 9001KP7LRR9

  • Zoro # G510790023

product price:  $165.99
/ea
Free Shipping & Returns

Key Features

Lens Material
polycarbonate
Size
30 mm
Lens Type
domed
Standards
UL 508, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1
Width
54 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KP7LRR9
Zoro #
G510790023
UPC #
-
Country of Origin
Mexico

Dimensions

Size
30 mm
Width
54 mm
Height
70 mm
Mounting Diameter
30 mm

Details

Item
Pilot 30mm Light, 220-240v, red LED
Lens Material
polycarbonate
Lens Type
domed
Standards
UL 508, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1
Operating Position
any position
[Ui] Rated Insulation Voltage
250 V 2)IEC 60947-1
Cap/Operator or Lens Colour
red
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Bulb Base
BA 9s
Product or Component Type
pilot light
Supply Frequency
50...60 Hz
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
complete product
Ip Degree of Protection
IP66 IEC 60529
Range of Product
Harmony 9001K
Shape of Screw Head
cross slotted
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
[Us] Rated Supply Voltage
220...240 V
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
50 gn IEC 60068-2-27
Light Source Colour
red
Protective Treatment
TC
Device Short Name
9001K
Shape of Signaling Unit Head
round
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Light Block Supply
direct 220...240 V AC 50/60 Hz 6 V)
Connections - Terminals
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10A
Light Source
LED
Bezel Material
metal
Overvoltage Category
class II IEC 61140
Tightening Torque
0.8-0.8 N.m IEC 60947-1

Description

Pilot 30mm Light, 220-240v, red LED
