  13. 600VAC Reversing Contactor 3P 27A NEMA 1

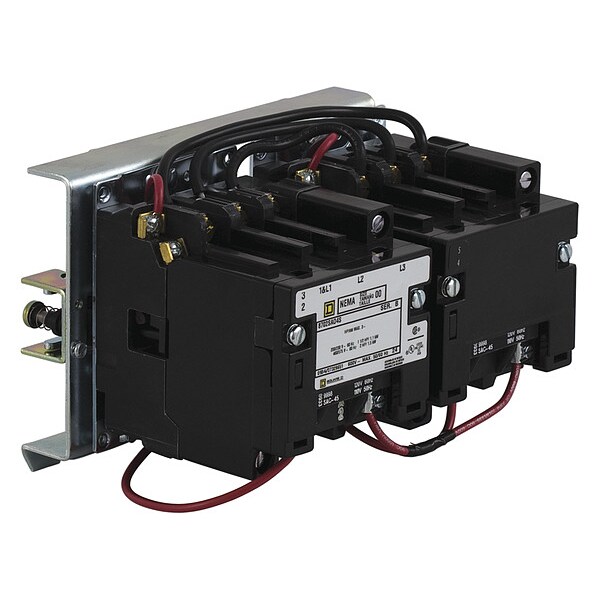

Square D 600VAC Reversing Contactor 3P 27A NEMA 1 8702SCO8V02S - main

600VAC Reversing Contactor 3P 27A NEMA 1

  • Mfr # 8702SCO8V02S

  • Zoro # G0568176

product price: $1,094.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
27
Action
Reversing
Number of Poles
3
Coil Volts
600VAC
Height
127.00 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8702SCO8V02S
Zoro #
G0568176
UPC #
785901872603
Country of Origin
Mexico

Dimensions

Height
127.00 mm
Width
181.10 mm
Depth
134.87 mm
NEMA Size
1

Details

Item
Contactor
Full Load Amps
27
Action
Reversing
Number of Poles
3
Coil Volts
600VAC
Product Certifications
UL Listed || CSA
Phase
3 phase
[Ue] Rated Operational Voltage
600 V AC
Electrical Connection
screw clamp terminals
Condition Of Use
horizontal
Local Signalling
no indicator
Rated Power In Hp
7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
Line Rated Current
27 A
Contactor Application
reversing
Product Or Component Type
contactor
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Control Type
no control units
Poles Description
3P
Nema Degree Of Protection
not rated (open device)
Control Circuit
separate control circuit
Wiring Mode
3 wires
Coil Voltage
110 V AC 50 Hz; 120 V AC 60 Hz
Horsepower Rating
7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC
Certifications
UL Listed; CSA
Short Circuit Current Rating
Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Description

Reversing Contactor 600Vac 27A Nema
