  11. Buck Boost Transformer, 1 kVA, NEMA 3R, 12/24V AC, 120/240V AC

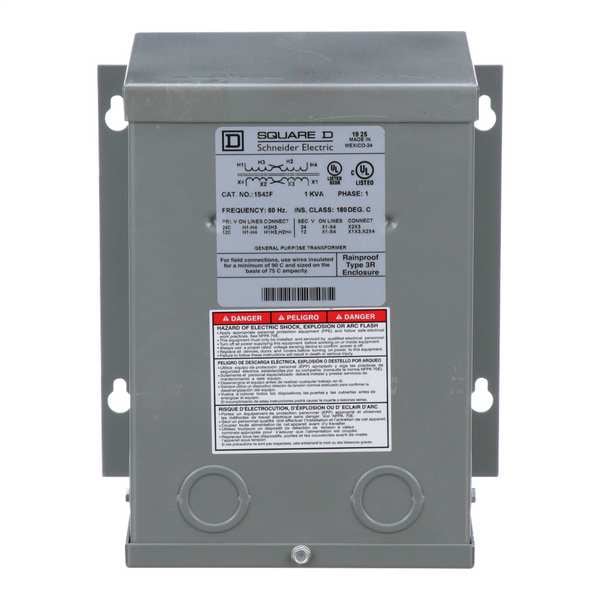

Square D Buck Boost Transformer, 1 kVA, NEMA 3R, 12/24V AC, 120/240V AC 1S43F - main

Buck Boost Transformer, 1 kVA, NEMA 3R, 12/24V AC, 120/240V AC

  • Mfr # 1S43F

  • Zoro # G0513396

product price: $801.43
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
1 kVA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1S43F
Zoro #
G0513396
UPC #
785901876311
Country of Origin
United States

Dimensions

Overall Height
8.20 in
Overall Width
7 in
Overall Depth
5.4 in
Width
7.0 in
Knockout Size - Transformer
1/2 in
Height
8.2 in
Depth
5.4 in
Manufacturers Warranty Length
18 mo

Details

Item
Buck Boost Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
1 kVA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Color
Gray
Phase - Electrical
1
Temp. Rise
115 Degrees C
Enclosure Finish
Powder Coated
Enclosure Rating
NEMA 3R
VA Rating - Transformer
1 kVA
Output Voltage - Transformer
12V AC, 24V AC
Standards
CSA, cULus, RoHS Compliant, UL and cUL Listed (UL 506)
Features
Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Insulation Max. Temp.
180 °C
Insulation Temperature
356°F (180°C)
Primary Voltage
120 x 240 V
Enclosure Code
7A
Temperature Rise
115°C
Includes Knockouts
Knockouts Included
Insulation Temperature Rating
356 Degrees F

Description

Buck Boost Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 12V AC, 24V AC, VA Rating - Transformer 1 kVA, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54, Color Gray
