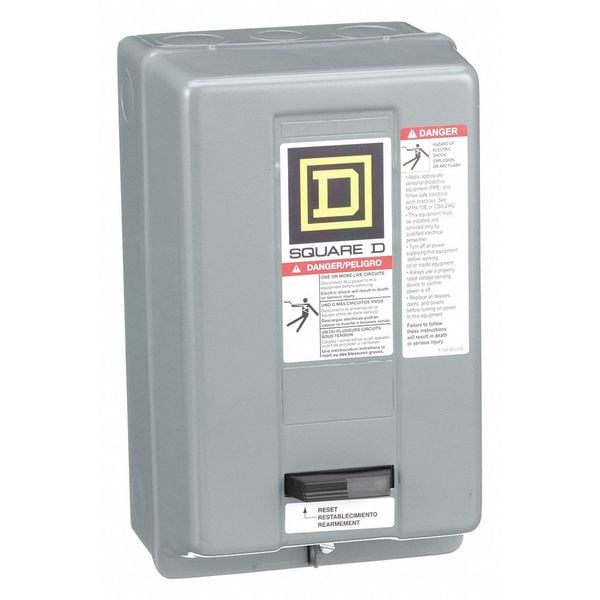

Captive Screws Electrical Enclosures, 10 in H, 5.6 in D, 6 in W, 1, Steel
Mfr # 9991SCG8
Zoro # G1007684
CAD Available
product price: $61.15
/eaKey Features
CAD Drawing
Nominal Width
6 in
Nominal Height
10 in
Nominal Depth
5.6 in
NEMA Enclosure Rating
1
Enclosure Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9991SCG8
Zoro #
G1007684
UPC #
785901759072
Country of Origin
Mexico
Dimensions
Nominal Width
6 in
Nominal Height
10 in
Nominal Depth
5.6 in
Body Material Thickness
20 ga
Details
Item
Electrical Enclosures
NEMA Enclosure Rating
1
Enclosure Material
Steel
Closure Method
Captive Screws
Cover Closure Type
Screw On
Knockouts
No
Metallic / Non-Metallic
Metallic
Color
Silver
Finish
Painted
Mounting
Surface
Cover Style
Solid
Series
9991
Interior Panel
None
Metal Gauge
20 ga
Standards
China RoHS Regulation
Includes Knockouts
Knockouts Not Included
Environment - MERCH
Indoor
CAD Available
Yes
Description
Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 00, 0 or 1. This NEMA 1 sheet steel enclosure is painted grey. Knockouts in the cover of this enclosure provide for field addition of Class 9999 rectangular cover mounted control units. Three number 10 screws are used to mount this enclosure. Enclosure is 10.00 inches tall, 5.98 inches wide and 5.56 inches deep. This enclosure is CSA certified.
