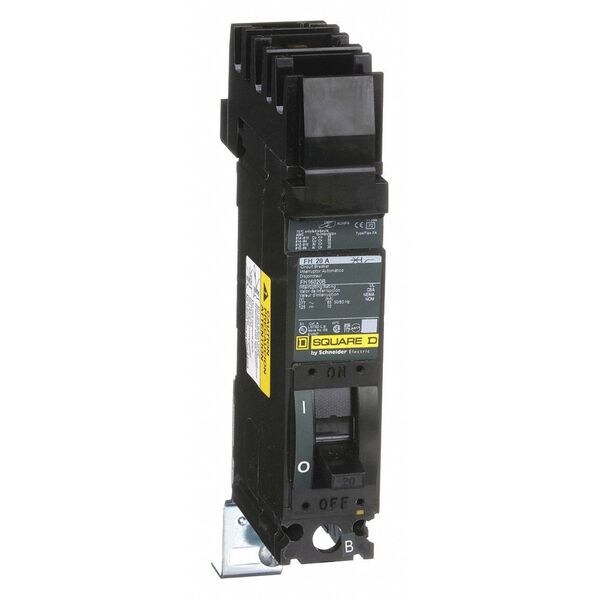

Circuit Breaker, 20, 277VAC, 1 Pole, FH Series (Discontinued)
- Mfr # FH16020B
- Zoro # G2478061
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
FH16020B
Zoro #
G2478061
UPC #
785901338925
Country of Origin
Mexico
Dimensions
Frame Size
100A/FA
Width
1.50 in
Depth
4.16 in
Height
6.00 in
Max. Wire Size
4 AWG
Min. Wire Size
14 AWG (Cu), 12 AWG (Al)
Details
Item
Circuit Breaker
Series
FH
Amps
20
Number of Poles
1
AC Voltage Rating
277V AC
Circuit Breaker Type
High Interrupting Capacity
Phase
1
Max. AIR Rating
Not Rated
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lug
Phase Connection
B
DC Voltage Rating
125V DC
Standards
UL Listed, CSA Certified, CE Marked, IEC, Federal Specification W-C-375B/GEN
High Amp Trip Setting
600A
Low Amp Trip Setting
275A
Mounting
Plug In Panelboard
For Use With
I Line Panelboards
Description
Circuit Breaker, 20 Amps, AC Voltage Rating 277V AC, Max. AIR Rating Not Rated, For Use With I Line Panelboards, Series FH, High Amp Trip Setting 600A, Low Amp Trip Setting 275A, Circuit Breaker Type High Interrupting Capacity, Number of Poles 1, DC Voltage Rating 125V DC, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase 1, Instantaneous Trip Fixed, Phase Connection B, Frame Size 100A/FA, Height 6.00 in, Width 1.50 in, Depth 4.16 in, Min. Wire Size 14 AWG (Cu), 12 AWG (Al)
Restrictions
Hazardous material
