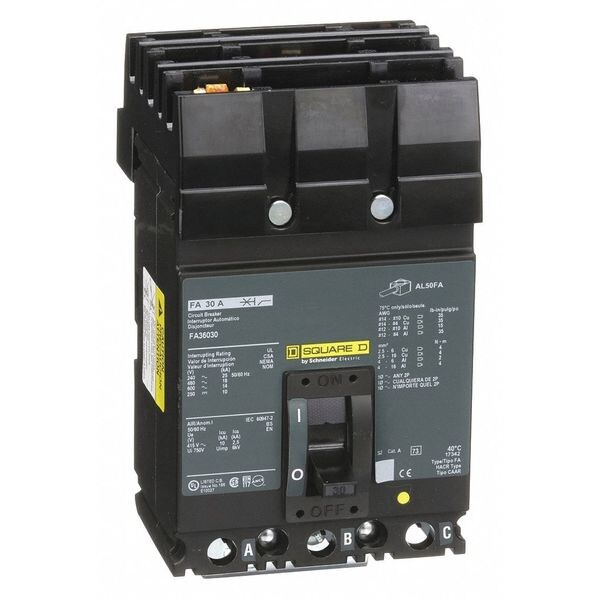

Circuit Breaker, FA Series, 30 A, 3 Pole, 600V AC, Not Rated (Discontinued)
- Mfr # FA36030
- Zoro # G1213755
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
FA36030
Zoro #
G1213755
UPC #
785901429128
Country of Origin
Mexico
Dimensions
Frame Size
100A/FA
Width
4.5 in
Depth
4.16 in
Height
6.0 in
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. Wire Size
4 AWG
Details
Item
Circuit Breaker
Series
FA
Amps
30 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Max. AIR Rating
Not Rated
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lug
Phase Connection
ABC
DC Voltage Rating
250V DC
Mounting
Plug In Panelboard
Standards
CE Marked, CSA Certified, Federal Specification W-C-375B/GEN, IEC, UL Listed
Low Amp Trip Setting
275 A
For Use With
I Line Panelboards
High Amp Trip Setting
600 A
Description
Circuit Breaker, 30 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating Not Rated, For Use With I Line Panelboards, Series FA, High Amp Trip Setting 600 A, Low Amp Trip Setting 275 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 100A/FA, Height 6.0 in, Width 4.5 in, Depth 4.16 in, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 4 AWG
