  13. Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

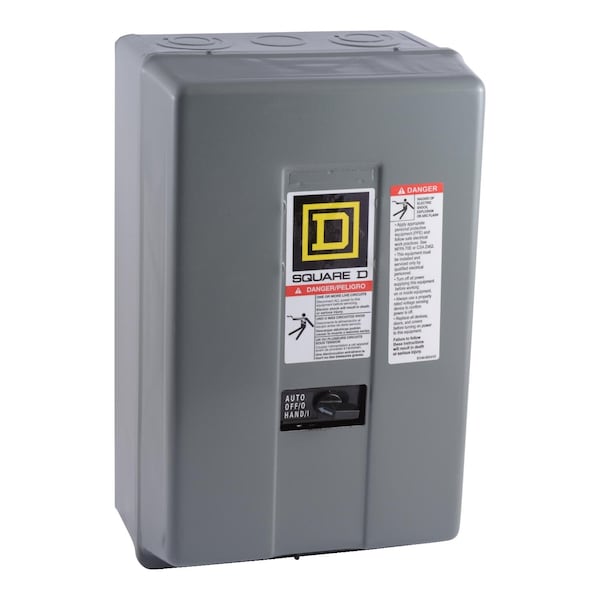

Square D Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 8903LG80V02C - main

Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

  • Mfr # 8903LG80V02C

  • Zoro # G0848130

product price: $1,379.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
8
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Height
322 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8903LG80V02C
Zoro #
G0848130
UPC #
785901061786
Country of Origin
Mexico

Dimensions

Height
322 mm
Width
198 mm
Depth
153 mm

Details

Item
Electrically Held Lighting Contactor
Number of Poles
8
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Hz
50/60 Hz
Standards
UL Listed; CSA
Control Type
Selector switch HAND-OFF-AUTO
Inrush VA
180-180 VA 60 Hz; 170-170 VA 50 Hz
Current Rating
20-20 A tungsten; 30-30 A fluorescent
Features
Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Control Circuit
Separate control circuit
Indicator
No
Electrical Connections
Screw-clamp terminals
Local Signalling
no indicator
Pvc Free
Yes
Line Rated Current
20-20 A tungsten, 30-30 A fluorescent
[Uc] Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz
Range of Product
8903L
Inrush Power In Va
180-180 VA 60 Hz, 170-170 VA 50 Hz
Poles Description
8P 8 NO
Nema Degree of Protection
NEMA 1 painted sheet steel surface
Hold-In Power Consumption In Va
35-35 VA 60 Hz, 35-35 VA 50 Hz

Description

Lighting Contactor 600Vac 30A L
