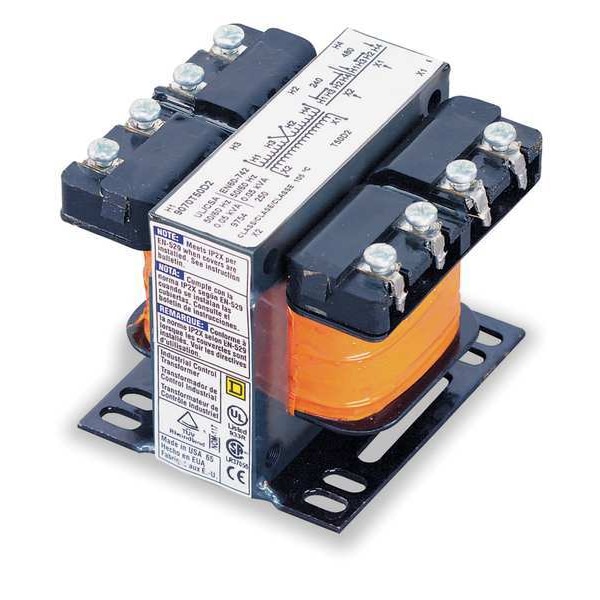

Control Transformer, 1 kVA, Not Rated, 24V AC, 240/480V AC
- Mfr # 9070T1000D2
- Zoro # G6381444
product price:Â
$
772.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
240/480V AC
Output Voltage
24V AC
Power Rating
1 kVA
Phase
Single
Mounting - Transformer
Foot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9070T1000D2
- Zoro #
- G6381444
- UPC #
- 785901313601
- Country of Origin
- Korea, Republic of
- Item
- Control Transformer
- Input Voltage - Transformer
- 240/480V AC
- Output Voltage
- 24V AC
- Power Rating
- 1 kVA
- Phase
- Single
- Mounting - Transformer
- Foot
- Hz - Electrical
- 50/60 Hz
- NEMA Enclosure Rating
- Not Rated
- Temperature Rise
- 115 Degrees C
- Fused
- No
- Protective Device
- None
- Enclosure Finish
- Epoxy Resin Varnish
- Enclosure Style - Transformer
- Open
- Standards
- CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
- Green Environmental Attribute
- Mercury Free; Pvc Free
- Secondary Connection
- Screw clamp terminals
- Enclosure Type
- Open
- Winding Material - Transformer
- Copper
- Insulation Max. Temp.
- 180 °C
- Primary Connection
- Screw clamp terminals
- Frequency
- 50/60 Hz
- Input Voltage
- 240V AC, 480V AC
- Enclosure Style
- Open
Description
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 1 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
