Shop TRIPP LITE

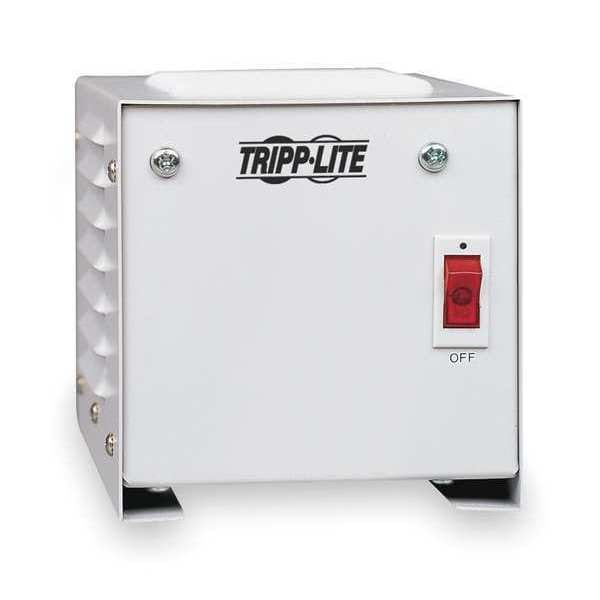

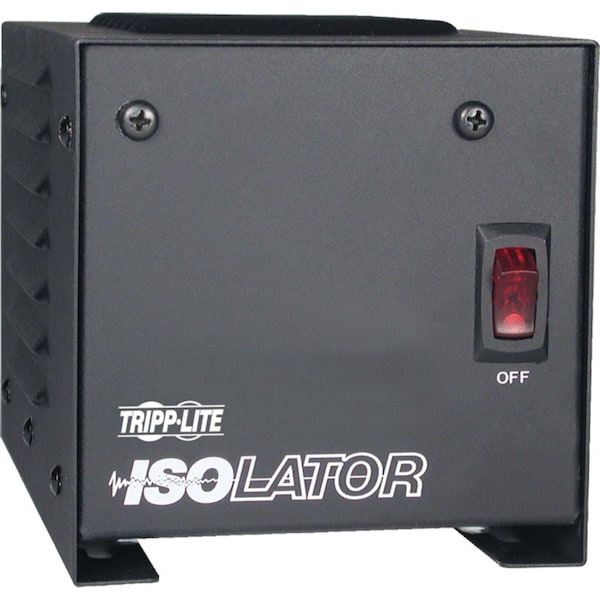

Isolation Transformer, 250 VA, 120V AC, 120V AC

  • Mfr # IS-250
  • Zoro # G3369274
CAD Available

product price:
$
186.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
250 W
Phase
Single
Mounting - Transformer
Desk Top; Wall
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
IS-250
Zoro #
G3369274
UPC #
037332070043
Country of Origin
Taiwan, Province of China
CAD Available
Yes
Item
Isolation Transformer
Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
250 W
Phase
Single
Mounting - Transformer
Desk Top; Wall
Hz - Electrical
60 Hz
IP Rating
Not Rated
Outdoor Rated - Transformer
No
Color
Black
Temperature Rise
Not Rated
Temp. Rise
Not Rated
Phase - Electrical
1
Enclosure Type
Small Tower
Standards
CAN/CSA-C22.2 No. 107.1 (Canada), RoHS, TAA, UL 1021
VA Rating - Transformer
250 VA
NEMA Receptacle Configuration
5-15R
NEMA Plug Configuration
5-15P
Number of Outlets
2
Includes
(2) Output Receptacles, Lighted Power Switch, Power Cord
Output Voltage - Transformer
120V AC
Input Circuit Breakers
One 3A thermal breaker
Total Harmonic Distortion
less than 1%
Protection Method
Yes, 2A circuit breaker
Maximum Input Amps
2.2
Let-through Voltage (Combination Wave)
L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
Receptacle Color
Black
Noise Suppression Rating
33-65dB normal mode; >80dB common mode
Cooling Method
Convection
Let-through Voltage (Ring Wave)
L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
Output Amp Capacity
2.1
Efficiency
0.96
Suppression Joule Rating
680
Compatibility
Point of Sale (POS) Equipment, Telecommunications Systems, Diagnostic Testing and Precise Measurement Devices, Sophisticated CAD/CAM Workstations, Computer Networking Equipment
Package Contents
IS250 Isolation Transformer System, Instruction Manual with Warranty Information
Power Handling
250 VA
Circuit Breaker
Yes
Receptacles
2 x NEMA 5-15R
Surge Energy Rating
680 J
Certifications & Standards
UL, cUL
Protection Type
Surge
Plug/Connector Type
NEMA 5-15P
TAA Compliant
Yes
Additional Information
Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B, Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A, Noise Suppression Rating: 33-65dB normal mode; &gt;80dB common mode, Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms, Total Harmonic Distortion: less than 1%, Transformer Type: Low impedence isolation transformer
Includes Circuit Breaker
Circuit Breaker Included
Input Voltage
120V
NEMA Enclosure Rating
No Enclosure
Frequency
60 Hz
Wire Color
Black

Dimensions

Overall Height
4.75 in
Overall Width
4.75 in
Overall Depth
7.5 in
Depth
7.75 in
Height
4.5 in
Cord Length
6 ft
Width
4.75 in
Power Cord/Cable Length
6 ft

Description

Isolation Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 250 VA, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Number of Outlets 2, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Desk Top, Wall, Outdoor Rated - Transformer No, Temp. Rise Not Rated, Color Black
