  11. Control Transformer, 100 VA, Not Rated, 12/24V, 600V

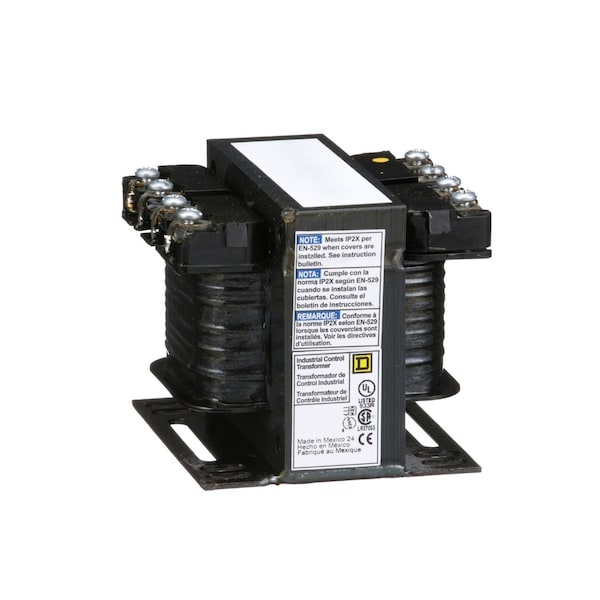

Square D Control Transformer, 100 VA, Not Rated, 12/24V, 600V 9070T100D36 - main

Control Transformer, 100 VA, Not Rated, 12/24V, 600V

  • Mfr # 9070T100D36

  • Zoro # G0859367

product price: $364.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
600V
Output Voltage
12/24V
Power Rating
100 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T100D36
Zoro #
G0859367
UPC #
785901688990
Country of Origin
United States

Dimensions

Overall Height
2.89 in
Overall Width
3.38 in
Overall Depth
3.34 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
600V
Output Voltage
12/24V
Power Rating
100 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Standards
CSA file LR37055 guide 184-N-90, UL listed file E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Material
copper: winding
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Secondary Connection
Screw clamp terminals
Insulation Max. Temp.
105 °C
Winding Material - Transformer
Copper
Temperature Rise
55°C
Pvc Free
Yes
Rated Power In Va
100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
Insulation Temperature
105°C
Product Compatibility
FSC1
Range of Product
T
Electrical Connection
screw clamp terminals
Nema Degree of Protection
not rated (open device)
Primary Voltage
600 V 12/24 V
Fingersafe Cover Compatibility
FSC1
Primary To Secondary Voltage
600 V 12/24 V

Description

Trfmr Control 100Va 600V12/24V
