  11. Control Transformer, 100 VA, Not Rated, 99/120/130V, 240/416/480/600V

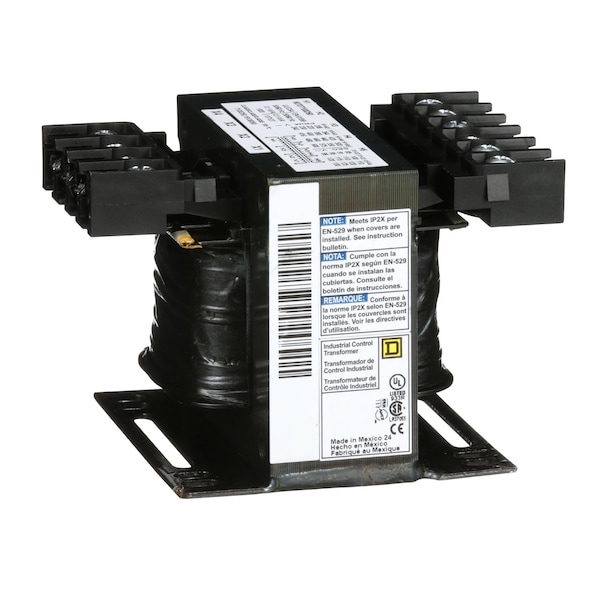

Square D Control Transformer, 100 VA, Not Rated, 99/120/130V, 240/416/480/600V 9070T100D50 - main

Control Transformer, 100 VA, Not Rated, 99/120/130V, 240/416/480/600V

  • Mfr # 9070T100D50

  • Zoro # G0572918

product price: $247.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
100 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T100D50
Zoro #
G0572918
UPC #
785901327257
Country of Origin
Mexico

Dimensions

Overall Height
3.2 in
Overall Width
3 3/4 in
Overall Depth
4.7 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
100 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Material
copper: winding
Winding Material - Transformer
Copper
Secondary Connection
Screw clamp terminals
Enclosure Type
Open
Insulation Max. Temp.
105 °C
Primary Connection
Screw clamp terminals
Nema Degree of Protection
not rated (open device)
Temperature Rise
55°C
Range of Product
T
Pvc Free
Yes
Rated Power In Va
100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
Product Compatibility
FSC23
Primary Voltage
240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V
Insulation Temperature
105°C

Description

Trfmr Control 100Va Multiple Voltages
