  11. Control Transformer, 1500 VA, Not Rated, 120/240V, 240/480V

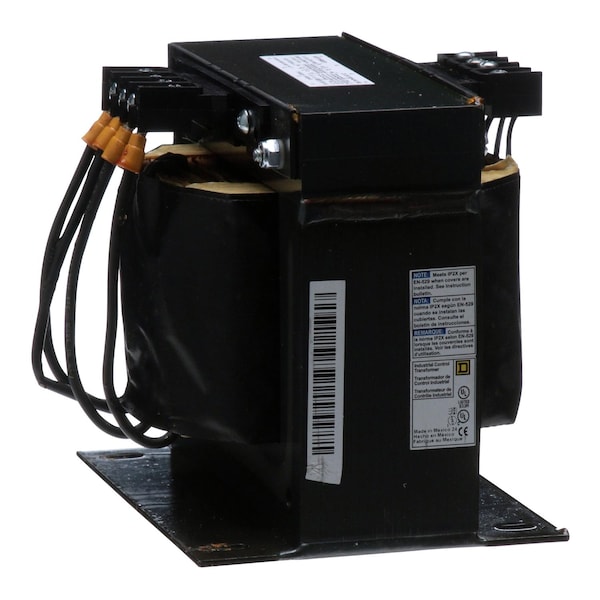

Square D Control Transformer, 1500 VA, Not Rated, 120/240V, 240/480V 9070T1500D31 - main

Control Transformer, 1500 VA, Not Rated, 120/240V, 240/480V

  • Mfr # 9070T1500D31

  • Zoro # G0572927

product price: $1,039.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/480V
Output Voltage
120/240V
Power Rating
1500 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T1500D31
Zoro #
G0572927
UPC #
785901803720
Country of Origin
Mexico

Dimensions

Overall Height
6.17 in
Overall Width
7.06 in
Overall Depth
5.92 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/480V
Output Voltage
120/240V
Power Rating
1500 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Standards
CSA file LR37055 guide 184-N-90; UL listed file E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Material
copper: winding
Primary Connection
Screw clamp terminals
Insulation Max. Temp.
180 °C
Winding Material - Transformer
Copper
Secondary Connection
Screw clamp terminals
Enclosure Type
Open
Range of Product
T
Primary Voltage
240 x 480 V 120/240 V, 230 x 460 V 115/230 V, 220 x 440 V 110/220 V
Nema Degree of Protection
not rated (open device)
Rated Power In Va
1500 VA UL, 1500 VA CSA, 1500 VA NOM, 1000 VA CE
Product Compatibility
FSC2
Insulation Temperature
180°C
Pvc Free
Yes
Temperature Rise
115°C

Description

Trfmr Control 1500Va 240/480V120/240V
