Shop SQUARE D

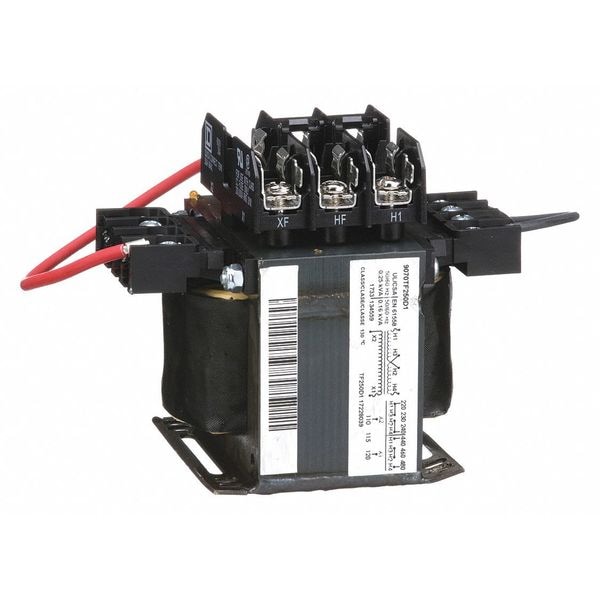

Control Transformer, 250 VA, Not Rated, 120V AC, 240/480V AC

  • Mfr # 9070TF250D1
  • Zoro # G2033202
CAD Available

product price:
$
299.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
240V AC, 480V AC
Output Voltage
110V AC, 115V AC, 120V AC
Power Rating
250 VA
Phase
Single
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9070TF250D1
Zoro #
G2033202
UPC #
785901904861
Country of Origin
Korea, Republic of
CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
240V AC, 480V AC
Output Voltage
110V AC, 115V AC, 120V AC
Power Rating
250 VA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
80 Degrees C
Protective Device
Primary and Secondary Fuse
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Includes
Top Mounted Fuse Block
Enclosure Finish
Epoxy Resin Varnish
Enclosure Style - Transformer
Open
Fused
Yes
Green Environmental Attribute
Mercury Free; Pvc Free
Primary Connection
Screw clamp terminals
Secondary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Material
Copper: winding
Enclosure Type
Open
Insulation Max. Temp.
130 °C
Fingersafe Cover Compatibility
FSC2
Product Certifications
CSA file LR37055 guide 184-N-90; UL listed file E61239
Insulation Temperature
266°F (130°C)
Primary To Secondary Voltage
240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V
Fuse Type
0.41 x 1.50 in CC top
For Fuse Class
CC
Frequency
50/60 Hz
Input Voltage
220V AC, 230V AC, 240V AC, 440V AC, 460V AC, 480V AC
Enclosure Style
Open

Dimensions

Overall Height
4.5 in
Overall Width
3.75 in
Overall Depth
5.3 in
Manufacturers Warranty Length
18 mo
For Fuse Length
1 1/2 in
For Fuse Diameter
7/16 in

Description

Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 250 VA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 80 Degrees C, Enclosure Finish Epoxy Resin Varnish
