  11. Control Transformer, 250 VA, Not Rated, 24V AC, 120/240V AC

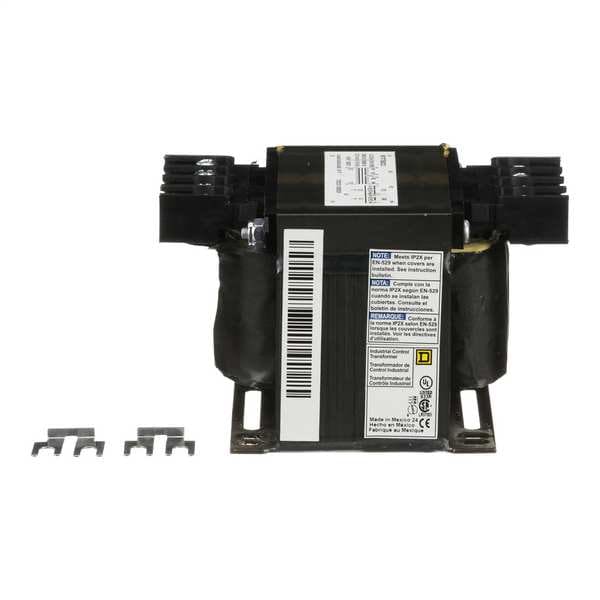

Square D Control Transformer, 250 VA, Not Rated, 24V AC, 120/240V AC 9070T250D23 - main

Control Transformer, 250 VA, Not Rated, 24V AC, 120/240V AC

  • Mfr # 9070T250D23

  • Zoro # G2842481

product price: $223.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
250 VA
Phase
1
Mounting - Transformer
Foot
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T250D23
Zoro #
G2842481
UPC #
785901905134
Country of Origin
Mexico

Dimensions

Overall Height
4.43 in
Overall Width
5 1/4 in
Overall Depth
3 3/4 in
Manufacturers Warranty Length
10 yr

Details

Item
Control Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
250 VA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Fused
No
Enclosure Finish
Epoxy Resin Varnish
Protective Device
None
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Enclosure Style - Transformer
Open
Green Environmental Attribute
Mercury Free; Pvc Free
Primary Connection
Screw clamp terminals
Material
Copper: winding
Insulation Max. Temp.
130 °C
Enclosure Type
Open
Winding Material - Transformer
Copper
Secondary Connection
Screw clamp terminals
Temperature Rise
80°C
Certifications
UL listed file E61239; CSA file LR37055 guide 184-N-90
Insulation Temperature
266°F (130°C)
Fingersafe Cover Compatibility
FSC2
Primary To Secondary Voltage
120 x 240 V 24 V

Description

Control Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 250 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 80 Degrees C, Enclosure Finish Epoxy Resin Varnish
