  11. Control Transformer, 750 VA, Not Rated, 120/240V, 550/575/600V

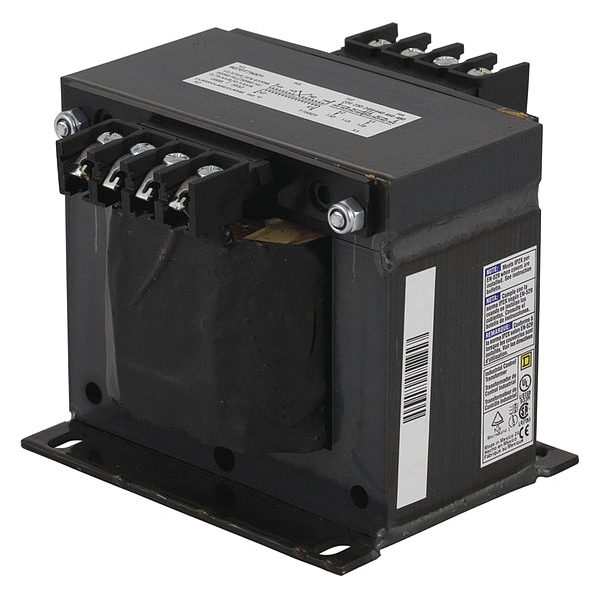

Square D Control Transformer, 750 VA, Not Rated, 120/240V, 550/575/600V 9070T750D37 - main

Control Transformer, 750 VA, Not Rated, 120/240V, 550/575/600V

  • Mfr # 9070T750D37

  • Zoro # G0851055

product price: $689.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
550/575/600V
Output Voltage
120/240V
Power Rating
750 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T750D37
Zoro #
G0851055
UPC #
785901689218
Country of Origin
United States

Dimensions

Overall Height
4.51 in
Overall Width
5 1/4 in
Overall Depth
5.61 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
550/575/600V
Output Voltage
120/240V
Power Rating
750 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Standards
UL Listed; CSA
Green Environmental Attribute
Mercury Free; Pvc Free
Secondary Connection
Screw clamp terminals
Primary Connection
Screw clamp terminals
Insulation Max. Temp.
180 °C
Enclosure Type
Open
Insulation Temperature
356°F (180°C)
Fingersafe Cover Compatibility
FSC2
Primary To Secondary Voltage
550/575/600 V 120/240 V; 550/575/600 V 115/230 V; 550/575/600 V 110/220 V
Temperature Rise
115°C
Rated Power In Va
750 VA UL, 750 VA CSA, 750 VA NOM, 500 VA CE
Nema Degree of Protection
not rated (open device)
Range of Product
T
Primary Voltage
550/575/600 V 120/240 V, 550/575/600 V 115/230 V, 550/575/600 V 110/220 V
Pvc Free
Yes

Description

Transformer Control 750Va 600V120/240V
