  13. Definite Purpose Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect

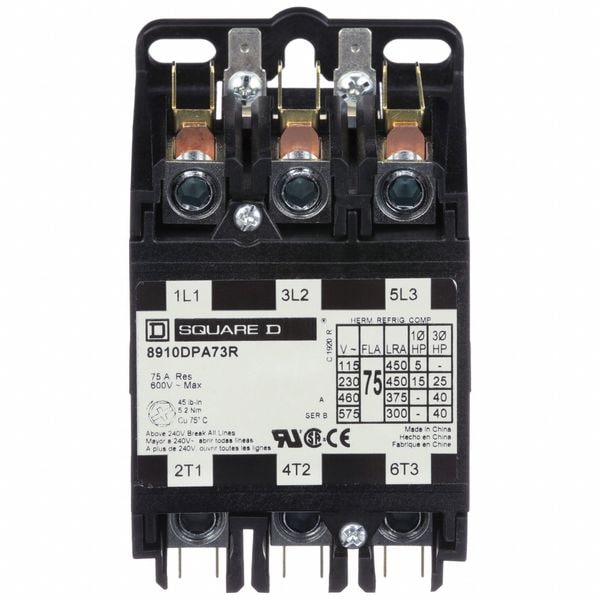

Square D Definite Purpose Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect 8910DPA73RV09 - main

Definite Purpose Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect

  • Mfr # 8910DPA73RV09

  • Zoro # G407963769

product price: $258.99
/ea
Free Shipping & Returns

Key Features

Coil Voltage
208V-240V AC
Series
8910DPA
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
94 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8910DPA73RV09
Zoro #
G407963769
UPC #
785901768371
Country of Origin
United States

Dimensions

Depth
2.56 in
Width
4.1 in
Height
3.65 in
Overall Width
4.1 in
Overall Height
3.65 in
Overall Depth
2.56 in

Details

Item
Definite Purpose Contactor
Coil Voltage
208V-240V AC
Series
8910DPA
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
94 A
Full Load Current - Inductive
75 A
Phase
3
Terminal Connection Type
Box Lug & Quick Connect
HP @ 3 Phase - 575V
40 hp
Standards
CSA, EU RoHS, REACH, UL Listed
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
40 hp
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Single Phase - 120V AC
5 hp
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Locked Rotor Load
300 A @ 575V AC, 375 A @ 460V AC, 450 A @ 277V AC
Horsepower @ Single Phase - 240V AC
15 hp
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 240V AC
25 hp

Description

Definite Purpose Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 220/208-240V AC, Series 8910 Series Type DPA, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 15 hp, Horsepower @ Single Phase - 120V AC 5 hp, Full Load Current - Resistive 94 A
