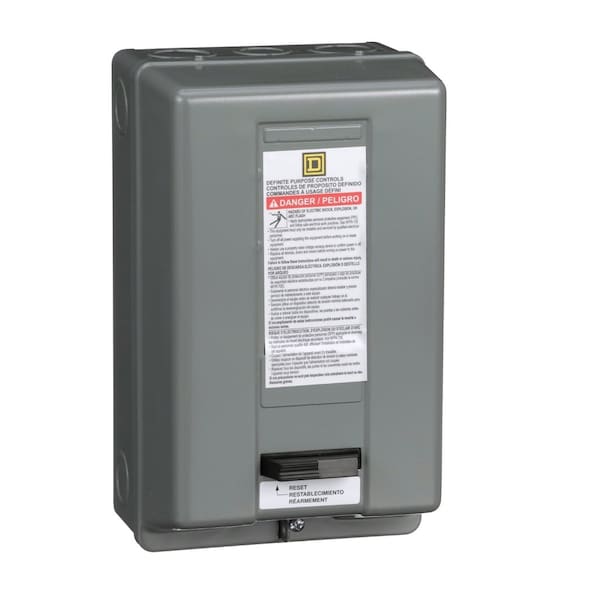

Definite Purpose Magnetic Motor Starter, Non-Reversing, 208V-240V AC, 3 P
Mfr # 8911DPSG43V09
Zoro # G305908794
product price:Â
$
370.99
/ea
Free Shipping & Returns
Key Features
Coil Voltage
208V-240V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Standards
REACH, RoHS, UL Listed
Includes
Trip-Free Reset Mechanism
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 8911DPSG43V09
- Zoro #
- G305908794
- UPC #
- 785901024712
- Country of Origin
- China
- Item
- Definite Purpose Magnetic Motor Starter
- Coil Voltage
- 208V-240V AC
- Number of Poles
- 3
- Reversing Capability
- Non-Reversing
- Standards
- REACH, RoHS, UL Listed
- Includes
- Trip-Free Reset Mechanism
- HP @ 3 Phase - 575V
- 20 hp
- Thermal Unit Code
- F4
- Maximum Voltage Rating
- 600V AC
- Locked Rotor Load
- 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 230V AC
- Series
- Class 8911 Type DP
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Overload Protection Type
- Melting Alloy
- Current AC
- 40 A
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Mechanical Operating Durability
- 500,000
- NEMA Enclosure Rating
- 1
- Horsepower @ Three Phase - 600V AC
- 25 hp
- Phase
- Three
- Horsepower @ Three Phase - 480V AC
- 20 hp
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Frequency
- 50/60 Hz
- Locked Rotor Rated Current
- 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 230V AC
Description
Definite Purpose Magnetic Motor Starter, Series Class 8911 Type DP, Coil Voltage 208-240V AC, Horsepower @ Three Phase - 600V AC 25 hp, Maximum Voltage Rating 600V AC, Horsepower @ Three Phase - 480V AC 20 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Single Phase - 120V AC 3 hp, Current AC 40 A, Number of Poles 3, NEMA Enclosure Rating 1, Reversing Capability Non-Reversing, Phase Three, Overload Protection Type Melting Alloy
