  9. DPST Open Liquid Level Switch Close on Rise 600VAC

This item is Discontinued.

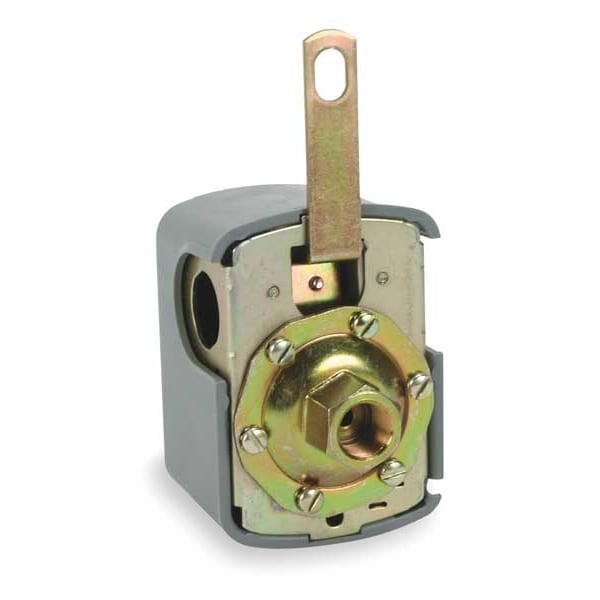

Square D DPST Open Liquid Level Switch Close on Rise 600VAC 9036DG2S1

DPST Open Liquid Level Switch Close on Rise 600VAC (Discontinued)

  • Mfr # 9036DG2S1
  • Zoro # G2297967
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9036DG2S1
Zoro #
G2297967
UPC #
785901575719
Country of Origin
Mexico

Dimensions

Width
3.6 in
Overall Length
7.1 in
Height
5.98 in
Conduit Size
3 1/2 in
Float Length
7 in
Float Dia.
7 in
Overall Width
3.6 in
Overall Height
5.98 in
Float Diameter
7 in

Details

Voltage
600VAC
Item
Open Liquid Level Switch
Amps
10 A
NEMA Rating
1
Electrical Connections
Screw Clamp
VA Rating
460V AC
Float Material
Stainless Steel
Standards
CSA, UL Listed
Mounting
Open Tank
Float Position
Below
Float Switch Contact Form
DPST
HP @ 3 Phase - 240V
5 hp
Contact Form
DPST
Max. Voltage
600
HP @ 1 Phase - 240V
3 hp
Body Material
Steel
Operating Temp. Range
-22 Degrees to 220 Degrees F
Includes
Nameplate
HP @ 1 Phase - 120V
2 hp
Float Travel
1 1/4 in
Float Switch Float Material
Stainless Steel
Max. Current
600 A
Switch Function
Close On Rise
Product Type
Open Liquid Level Switch
Voltage Rating - Maximum
600 V
NEMA Enclosure Rating
1
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Single Phase - 240V AC
3 hp
Current Rating
10 A
Electrical Connection
Screw Clamp
Horsepower @ Three Phase - 240V AC
5 hp

Description

Open Liquid Level Switch, 10 A Amps, Contact Form DPST, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 7.1 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 5.98 in, Width 3.6 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel, Float Position Below
