  15. Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, spring return, 24-28V, 1 C/O

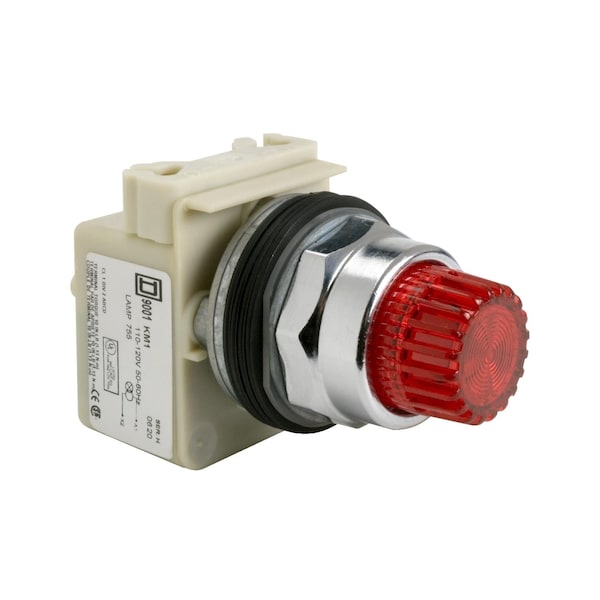

Square D Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, spring return, 24-28V, 1 C/O 9001K2L35R21H13 - main

Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, spring return, 24-28V, 1 C/O

  • Mfr # 9001K2L35R21H13

  • Zoro # G3303718

product price: $200.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K2L35R21H13
Zoro #
G3303718
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
57 mm
Size
30 mm
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA LR 25490 class 3211 03 || NEMA || CE || UL listed file E42259 CCN NKCR
Bezel Material
metal
Device Short Name
K
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Operating Position
any position
Operator Profile
mushroom Ø 57 mm, red projecting
Product Certifications
CSA LR 25490 class 3211 03 || NEMA || CE || UL listed file E42259 CCN NKCR
Contact Operation
standard
Device Presentation
complete product
Light Source
incandescent, incandescent bulb
[Us] Rated Supply Voltage
24 to 28 V, 24 to 28 V AC/DC
Cap/Operator Or Lens Colour
red
Type Of Operator
spring return
Connections - Terminals
screw clamp terminals
Contacts Type And Composition
1 C/O
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Light Block Supply
full voltage, direct
Operator Additional Information
screw-on plastic
Product Or Component Type
illuminated push-button
Bulb Base
BA 9s
Range of Product
Harmony 9001K

Description

PUSH BUTTON 600VAC 10A 30MM T-K
