  15. Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, LED green, 120V, 1 NO

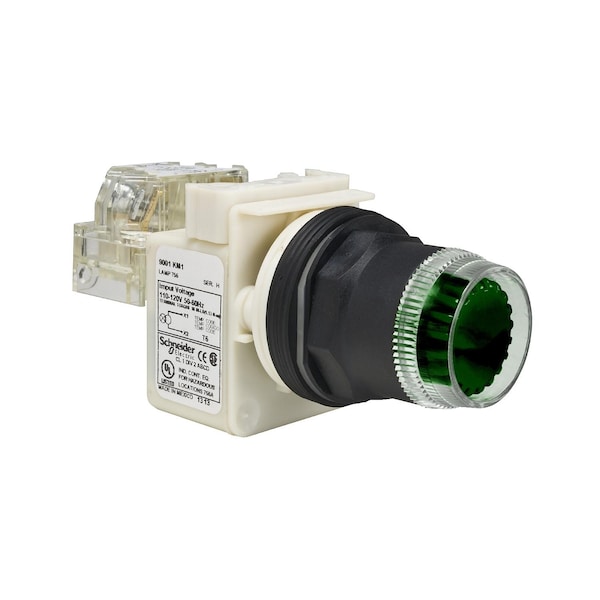

Square D Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, LED green, 120V, 1 NO 9001SK2L38LGGH5 - main

Illuminated push-button, Harmony 9001SK, plastic, projecting, green, 30mm, spring return, LED green, 120V, 1 NO

  • Mfr # 9001SK2L38LGGH5

  • Zoro # G3300364

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SK2L38LGGH5
Zoro #
G3300364
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Operator Illumination
Illuminated
Head Color
Green
Terminal Connection
Screw Clamp
Standards
JIS C 4520 || UL 508 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4
Bezel Material
plastic
Operator Additional Information
without guard
Electrical Shock Protection Class
class II IEC 61140
Product Certifications
NEMA || UL 508
Contacts Material
silver alloy contacts
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Device Short Name
9001SK
Contact Operation
standard
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Ith] Conventional Free Air Thermal Current
10 A
Ip Degree Of Protection
IP66 IEC 60529
Mechanical Durability
5000000 cycles
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Operator Profile
projecting, green projecting
Light Block Supply
direct
Shape Of Screw Head
cross slotted
Device Presentation
complete product
Shock Resistance
50 gn IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
[Us] Rated Supply Voltage
120 V, 120 V AC/DC
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type
illuminated push-button
Protective Treatment
TC
Contacts Type And Composition
1 NO
Bulb Base
BA 9s
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
[Icm] Rated Short-Circuit Making Capacity
0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Type Of Operator
spring return
Cap/Operator Or Lens Colour
green
Operating Position
any position
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
[Ie] Rated Operational Current
0.55 A 125 V, DC-13, A600-Q600 NEMA
Ambient Air Temperature For Storage
-40-70°C
Light Source
LED
Light Source Colour
green
Range of Product
Harmony 9001SK

Description

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
