  15. Pilot Light Head, Yellow, 22mm

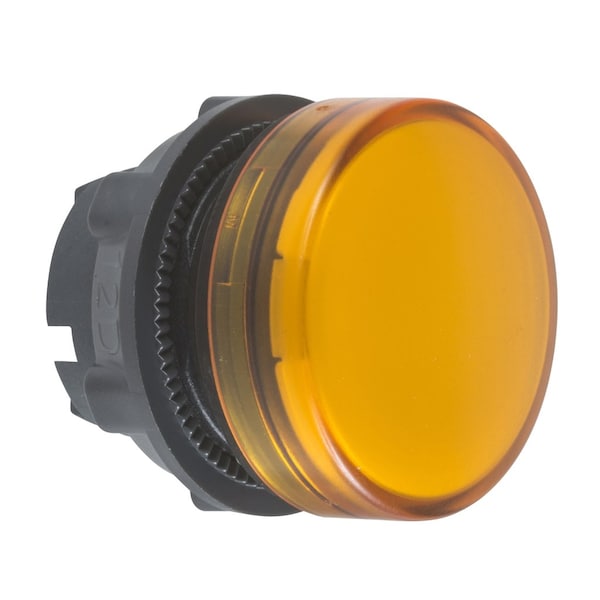

Schneider Electric Pilot Light Head, Yellow, 22mm ZB5AV05 - main

Pilot Light Head, Yellow, 22mm

  • Mfr # ZB5AV05

  • Zoro # G0416631

product price: $6.89
/ea

Key Features

Material
Plastic
Lens Type
Smooth
Color
Yellow
Size
22 mm
Body Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB5AV05
Zoro #
G0416631
UPC #
785901355120
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
31 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Pilot Light Head
Material
Plastic
Lens Type
Smooth
Color
Yellow
Body Material
Plastic
Lens Material
Plastic
For Use With
Schneider BA9 Light Modules
Standards
CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
Basic Material
Plastic
Suggested Lamp Type
Mfr. Series BA9 Lamp Module
Lamp Type
Incandescent, LED, Neon
IP Rating
IP66, IP67, IP69, IP69K
NEMA Rating
13, 4X
Shape
Round
Product Type
Pilot Light Head
Bezel Material
dark grey plastic
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Operator Additional Information
with plain lens
Ik Degree Of Protection
IK05 IEC 50102
Device Short Name
ZB5
Product Or Component Type
head for pilot light
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Device Presentation
basic element
Product Compatibility
BA 9s
Cap/Operator Or Lens Colour
yellow
Electrical Composition Code
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Operation
-40-70°C
Head Type
standard
Nema Degree Of Protection
NEMA 13 || NEMA 4X
NEMA Enclosure Rating
13, 4X
Compatible Lamp Type
BA9 Lamp Module
Compatible with Series
XB5
Light Head Material
Plastic

Description

Pilot Light Head, Size 22 mm, Color Yellow, Shape Round, Lens Type Smooth, Basic Material Plastic, NEMA Rating 13, 4X, Lamp Type Incandescent, LED, Neon, Lens Material Plastic, Body Material Plastic, Suggested Lamp Type Mfr. Series BA9 Lamp Module, IP Rating IP66, IP67, IP69, IP69K, Standards CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
