  8. Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 120V

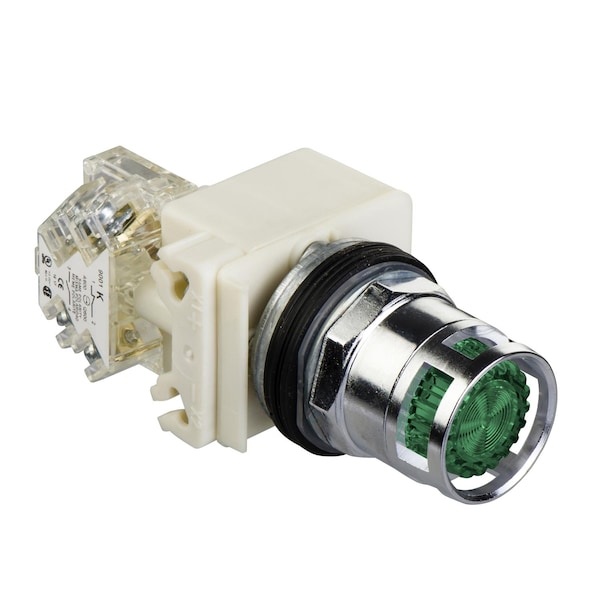

Square D Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 120V 9001K3L38LGG - main

Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 120V

  • Mfr # 9001K3L38LGG

  • Zoro # G4062551

product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Bezel Material
metal
Standards
EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-5-1
Cap/Operator Or Lens Colour
green
Operator Additional Information
metal guard
Bulb Base
BA 9s
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001K3L38LGG
Zoro #
G4062551
UPC #
-
Country of Origin
Mexico

Dimensions

Mounting Diameter
30 mm

Details

Item
PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS
Bezel Material
metal
Standards
EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-5-1
Cap/Operator Or Lens Colour
green
Operator Additional Information
metal guard
Bulb Base
BA 9s
Type Of Operator
spring return
Product Or Component Type
head for illuminated push-button
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
9001K
Contacts Type And Composition
without contact block
Shape Of Signaling Unit Head
round
Shock Resistance
50 gn IEC 60068-2-27
Electrical Shock Protection Class
class II IEC 61140
Product Certifications
UL 508 || NEMA
Mechanical Durability
5000000 cycles
Light Source Colour
green
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Ambient Air Temperature For Storage
-40-70°C
Operating Position
any position
Ip Degree Of Protection
IP66 IEC 60529
[Us] Rated Supply Voltage
120 V
Operator Profile
green flush, unmarked, flush
Light Block Supply
direct 120 V AC/DC
Light Source
Green LED
Protective Treatment
TC
Range of Product
Harmony 9001K

Description

PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS
