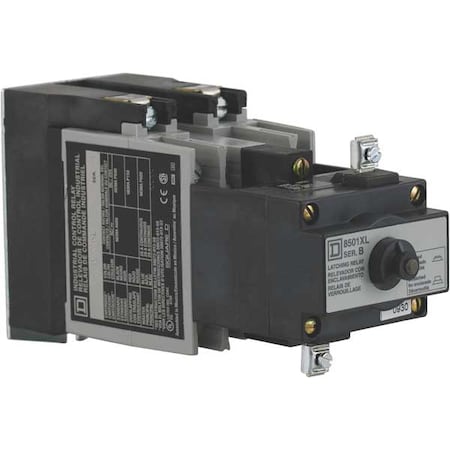

Latching NEMA Control Rlay, 3NO, 24VAC, 10A (Discontinued)
- Mfr # 8501XO30XLV01
- Zoro # G2525144
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
8501XO30XLV01
Zoro #
G2525144
UPC #
785901190967
Country of Origin
Mexico
Dimensions
Body Height - Relay
3.50 in
Body Depth - Relay
3.95 in
Body Width - Relay
2.23 in
Details
Item
Latching NEMA Control Relay
Coil Volts
24V AC
Hz
60
Contact Amp Rating (Resistive)
10A
Coil Rating
148VA Inrush, 23VA Sealed
Contact Form
3NO
Mounting
Panel
Features
Straight-Through Wiring, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Contact Conversion without Removing Terminal Screws or Wires, Self-Lifting Pressure Wire Connectors, Replaceable Coil
Standards
UL, CSA, CE
Contact Form - Relay
(3) SPST-NO
Accessory Group
G
Mounting - Relay
Surface
Response Time
Pick Up: 15 msec, Drop Out: 13 msec
DC Contact Rating - Relay
5A @ 125/250V
Hz - Electrical
60 Hz
AC Contact Rating - Relay
10A @ 120/240/480/600V
Item - Relay
Latching NEMA Style Control Relay
Contact Material
Silver Cadmium Oxide
Power Consumption - Relay
23.0VA
Weight
2.0 lbs.
Description
Latching NEMA Control Relay, Contact Form 3NO, Contact Material Silver Cadmium Oxide, Standards UL, CSA, CE, Weight 2.0 lbs.
