  9. Load Center, 12 Spaces, 125A Amps, 120/240V AC

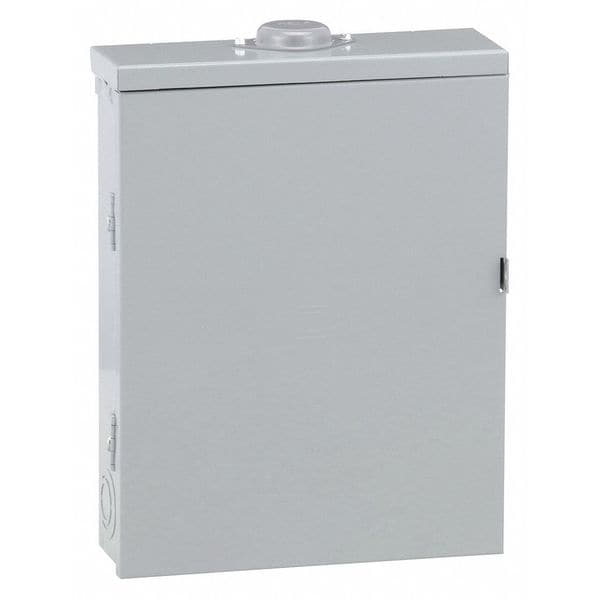

Square D Load Center, 12 Spaces, 125A Amps, 120/240V AC QO312L125GRB - main

CAD Viewer & Download Files

Load Center, 12 Spaces, 125A Amps, 120/240V AC

  • Mfr # QO312L125GRB

  • Zoro # G0925136

CAD Available
product price: $254.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Amps
125A
Voltage
120/240V AC
Phase
3
Circuit Breaker Type
QO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO312L125GRB
Zoro #
G0925136
UPC #
785901295044
Country of Origin
United States

Dimensions

Height
18.94 in
Width
14.77 in
Depth
4-1/2 in
Min. Wire Size
AWG 6
Max. Wire Size
AWG 2/0 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
12
Amps
125A
Voltage
120/240V AC
Phase
3
Circuit Breaker Type
QO
Short Circuit Current Rating
65kA
Max. No. of Tandem Breakers
0
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Copper
Standards
RoHS Compliant, UL Listed
Special Features
Mercury Free
Recommended Ground Bar Kit
Included
Color
Gray
Location
Outdoor
Cover Attachment Style
Side Hinge
Feed Location
Top/Bottom
For Use With
Square D QO Circuit Breakers
Enclosure Surface Finish
Enamel
Min. Operating Temp.
23 Degrees F
Cover Closure Method
Latch
Max. Operating Temp.
104 Degrees F
Wiring Configuration
4-wire || 3-wire
Ground Bar Kit
grounding bar included (not installed)
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
Electrical Connection
lugs
Number Of Circuits
12
Primary/Ambient Air Temp.
-5°C || 40°C
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
