Shop SQUARE D

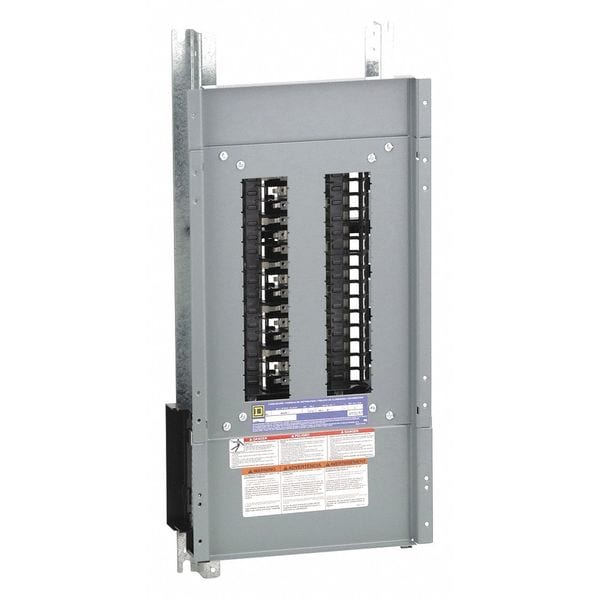

Panelboard Interior, QHB, QOB, QOB-VH, 30 Spaces, 225A, 240V, Convertible Main Lug, 3 Phase

  • Mfr # NQ430L2

  • Zoro # G2925273

product price:
$
532.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Voltage
240V
Phase
3
Short Circuit Current Rating
100000 RMS Symmetrical
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
NQ430L2
Zoro #
G2925273
UPC #
785901507758
Country of Origin
Korea, Republic of
Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
225 A
Voltage
240V
Phase
3
Short Circuit Current Rating
100000 RMS Symmetrical
Series
QHB, QOB, QOB-VH
Recommended Surface Cover
G0548021 for Main Lug, G7464886 for Main Breaker
Recommended Flush Cover
G2427844 for Main Lug, G1858053 for Main Breaker
Bus Material
Aluminum
Main Circuit Breaker Adapter Kit
4HHA3, 4HHA4, Mfr. No. NQMB2KI
Standards
CSA Approved, UL Listed
Circuit Breaker Type
Plug In Miniature
Recommended Enclosure
1D691 for Main Lug, 1D698 for Main Breaker
Recommended Ground Bar Kit
5B716
For Use With
NQ Circuit Breakers
Circuit Breaker Series
QHB, QOB, QOB-VH
Features
Mercury Free
Connections - Terminals
Lug line AWG 6 to 350 kcmil aluminium; Lug neutral AWG 6 to 350 kcmil aluminium
Tightening Torque
40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 in² (13.30 to 177.3 mm²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.30 to 126.7 mm²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 in² (107.2 to 152 mm²) (AWG 4 to 300 kcmil)
Rated Interrupted Current
10 kA; 22 kA; 65 kA
Wiring Configuration
4-wire

Description

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 225 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 120/208 to 240V AC, Phase Three, Bus Material Aluminum, Recommended Enclosure 1D691 for Main Lug, 1D698 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 27 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI
