CAD Viewer & Download Files

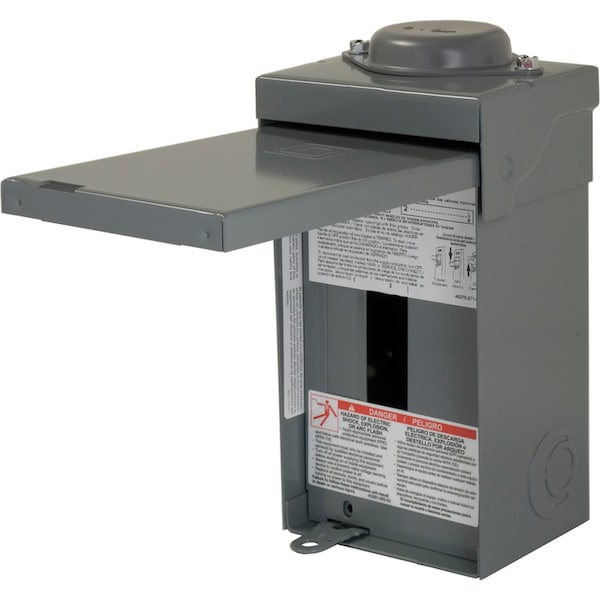

Load Center, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase
Mfr # HOM24L70RBCP
Zoro # G2919278
CAD Available
product price: $49.85
/eaKey Features
CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HOM24L70RBCP
Zoro #
G2919278
UPC #
47569071225
Country of Origin
United States
Dimensions
Height
238 mm
Width
124 mm
Depth
102 mm
Max. Wire Size
AWG 3 aluminium , AWG 4 copper
Min. Wire Size
AWG 12 aluminium,AWG 14 copper
Details
Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10 kA
Included Enclosure Cover
Surface Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Number of Poles
2
Wiring Configuration
3-wire
Surface Finish
baked enamel Gray
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Number Of Tandem Circuit Breakers
2
Number Of Circuits
4
Product Certifications
UL listed file E-6294
CAD Available
Yes
Description
Homeline plug-on neutral load centers offer time-savings for plug-on neutral combination arc fault (CAFI) and dual function circuit breaker installation. Innovative, split neutrals are designed to save you time and wire, allowing plug-on neutral circuit breakers to connect directly to the neutral bar without the pigtail. Coupled with the state-of-the-art design, neutral bars are now fully-distributed, accepting plug-on neutral circuit breakers on any space.
- • Homeline 70 amp 2-space 4-circuit outdoor surface mount main lug load center
- • Faster installation fewer connections
- • Saves wire fully distributed split neutral bar
- • Frees gutter space no pigtails
- • Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- • Faster and easier wiring all spaces accept tandems
