Shop SQUARE D

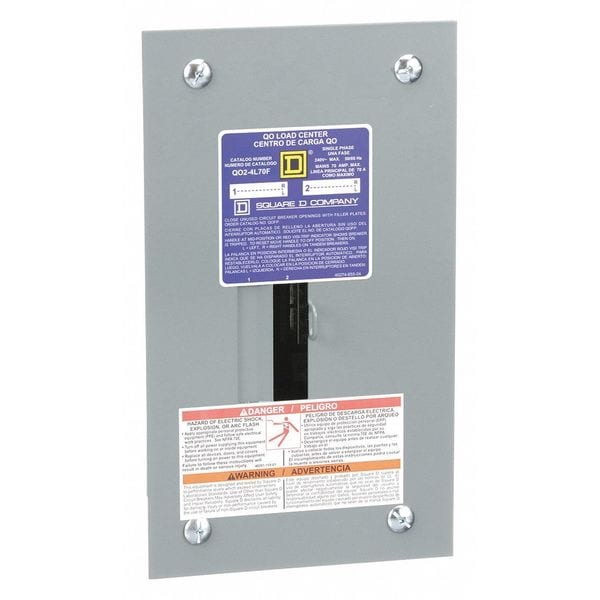

Load Center, 2 Spaces, 70A Amps, 120/240V AC

  • Mfr # QO24L70F

  • Zoro # G1688425

product price:  $43.99
/ea

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QO24L70F
Zoro #
G1688425
UPC #
785901785125
Country of Origin
Indonesia

Dimensions

Height
9.3 in
Width
4.8 in
Depth
3-1/4 in
Max. Wire Size
AWG 3 aluminium
Min. Wire Size
AWG 12

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Phase
1
Circuit Breaker Type
QO
Short Circuit Current Rating
65kA
Max. No. of Tandem Breakers
2
Series
QO
Included Enclosure Cover
Flush Cover
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Recommended Ground Bar Kit
5B718
Standards
RoHS Compliant, UL Listed
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
For Use With
Square D QO Circuit Breakers
Enclosure Surface Finish
Enamel
Feed Location
Top/Bottom
Cover Attachment Style
Screw On
Location
Indoor
Min. Operating Temp.
23 Degrees F
Color
Gray
Max. Operating Temp.
104 Degrees F
Cover Closure Method
Lift-Off
Primary/Ambient Air Temp.
-5°C || 40°C
Tightening Torque
main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 45 lb.in, AWG 3, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
Number Of Circuits
4
Wiring Configuration
3-wire
Ground Bar Kit
grounding bar (ordered separately)
Electrical Connection
lugs
Box Number
2
Product Certifications
UL Listed
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Finish
Baked Enamel

Description

Load Center, Number of Spaces 2, Amps 70 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Flush Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 2, Phase 1, Series QO, Height 9.3 in, Width 4.8 in, Depth 3 1/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 1, Cover Attachment Style Screw On, Cover Closure Method Lift-Off, Recommended Flush Cover Included
