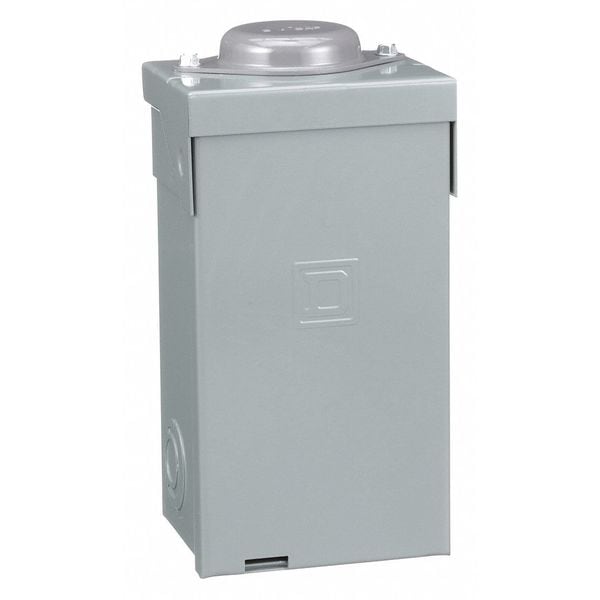

Load Center, 2 Spaces, 70A Amps, 120/240V AC

  • Mfr # QO24L70RB

  • Zoro # G1519043

CAD Available
product price:
$
76.29
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
QO24L70RB
Zoro #
G1519043
UPC #
785901785132
Country of Origin
Mexico

Dimensions

Height
9.38 in
Width
4.88 in
Depth
4 in
Min. Wire Size
AWG 12
Max. Wire Size
AWG 3 aluminium

Details

CAD Available
Yes
Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
70A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
Short Circuit Current Rating
65kA
Max. No. of Tandem Breakers
2
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Standards
RoHS Compliant, UL Listed
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
Recommended Ground Bar Kit
5B718
Min. Operating Temp.
23 Degrees F
Enclosure Surface Finish
Enamel
Location
Outdoor
Cover Attachment Style
Side Hinge
Feed Location
Top/Bottom
Color
Gray
Cover Closure Method
Latch
Max. Operating Temp.
104 Degrees F
For Use With
Square D QO Circuit Breakers
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
4
Wiring Configuration
3-wire
Ground Bar Kit
grounding bar (ordered separately)
Tightening Torque
main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 45 lb.in, AWG 3, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
Electrical Connection
lugs
Box Number
1R
Product Certifications
UL Listed
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Finish
Baked Enamel

Description

Load Center, Number of Spaces 2, Amps 70 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 2, Phase 1, Series QO, Height 9.38 in, Width 4.88 in, Depth 4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Side Hinge, Cover Closure Method Latch, Recommended Ground Bar Kit 5B718
