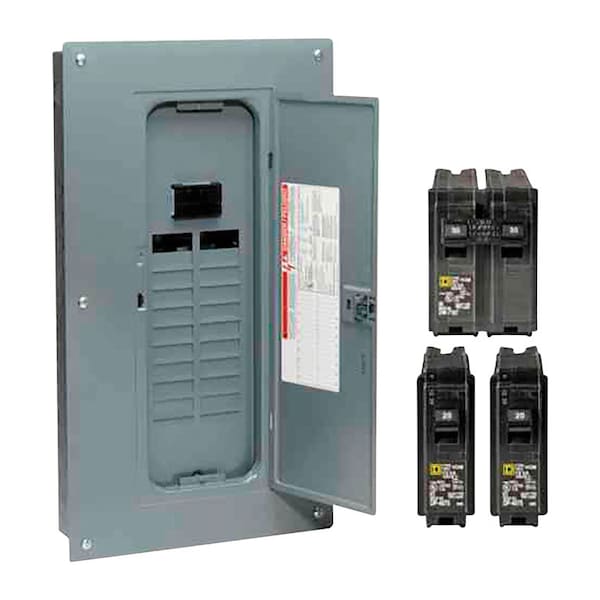

Load Center, 20 Spaces, 100A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase

  • Mfr # HOM2040M100PQCV

  • Zoro # G2922811

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
20
Amps
100 A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HOM2040M100PQCV
Zoro #
G2922811
UPC #
785901639343
Country of Origin
United States

Dimensions

Height
455 mm
Width
362 mm
Depth
95 mm
Min. Wire Size
AWG 6
Max. Wire Size
AWG 2/0 aluminium || AWG 1 copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
20
Amps
100 A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10 kA
Included Enclosure Cover
Combination
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Number of Poles
20
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Provided Equipment
circuit-breaker 2 ) 1P 20 A 120/240 V AC || circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled || circuit-breaker 1 ) 2P 30 A 120/240 V AC || load center 1 ) || qwik grip assembly kit 1 )
Number Of Circuits
40
Device Composition
grounding bar (ordered separately)
Surface Finish
baked enamel Gray
Number Of Tandem Circuit Breakers
20
Wiring Configuration
3-wire

Description

The Square D by Schneider Electric Homeline Value Pack 100 amp 20 space 40 Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers. Includes a cover, a selection of breakers and is UL listed for residential and commercial power distribution.


  • • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space.
  • • Ground and neutral bars accept up to (3) #10-14 equipment grounds.
  • • Single phase.
  • • Rated 120/240 VAC and 22,000 air short circuit current rating.
  • • Automatic flush adjusting cover requires less time to complete the job.
  • • Made in the USA.
