  9. Load Center, 3 Spaces, 60A Amps, 120/240V AC

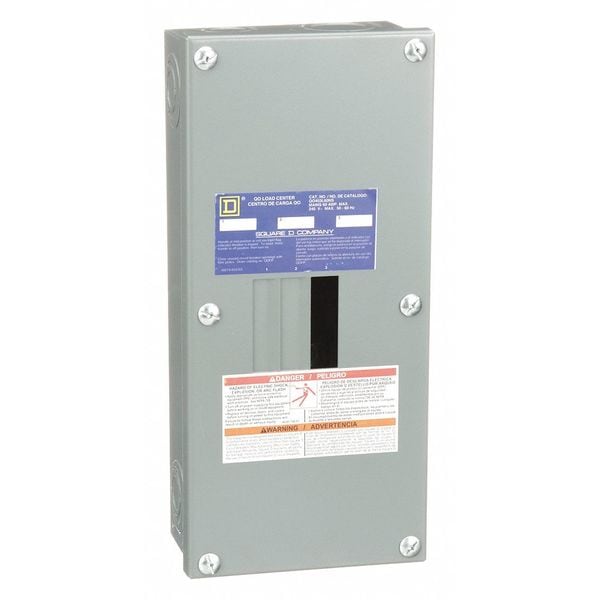

Square D Load Center, 3 Spaces, 60A Amps, 120/240V AC QO403L60NS - main

CAD Drawings

Download CAD Files

Load Center, 3 Spaces, 60A Amps, 120/240V AC

  • Mfr # QO403L60NS

  • Zoro # G2068324

CAD Available
product price: $88.45
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
3
Amps
60A
Voltage
120/240V AC
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO403L60NS
Zoro #
G2068324
UPC #
785901051701
Country of Origin
Mexico

Dimensions

Height
13.11 in
Width
5.88 in
Depth
3-1/2 in
Max. Wire Size
AWG 6 copper
Min. Wire Size
AWG 10

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
3
Amps
60A
Voltage
120/240V AC
Phase
3
Short Circuit Current Rating
65kA
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Special Features
Mercury Free
Recommended Ground Bar Kit
5B718
Circuit Breaker Type
QO
Max. No. of Tandem Breakers
0
Standards
RoHS Compliant, UL Listed
Feed Location
Top/Bottom
Max. Operating Temp.
104 Degrees F
Enclosure Surface Finish
Enamel
For Use With
Square D QO Circuit Breakers
Cover Closure Method
Lift-Off
Color
Gray
Min. Operating Temp.
23 Degrees F
Cover Attachment Style
Screw On
Location
Indoor
Electrical Connection
lugs
Wiring Configuration
3-wire || 4-wire
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
3
Tightening Torque
main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
Ground Bar Kit
neutral (factory installed)
Box Number
13
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Product Certifications
UL Listed
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 3 spaces and 3 circuits. This system provides 60A main lugs in a NEMA 1 enclosure. It also includes a neutral ground bar, surface cover, and is UL rated.
