  9. Load Center, 4 Spaces, 125A Amps, 240V

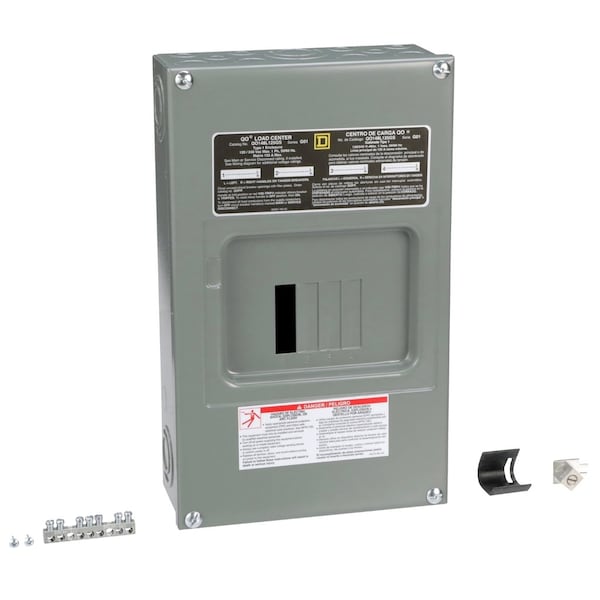

Square D Load Center, 4 Spaces, 125A Amps, 240V QO148L125GS - main

Load Center, 4 Spaces, 125A Amps, 240V

  • Mfr # QO148L125GS

  • Zoro # G0857075

product price: $77.65
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
4
Amps
125A
Voltage
240V
Circuit Breaker Type
QO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO148L125GS
Zoro #
G0857075
UPC #
785901484400
Country of Origin
Mexico

Dimensions

Height
376 mm
Width
226 mm
Min. Wire Size
AWG 12
Max. Wire Size
AWG 2/0 aluminium

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
4
Amps
125A
Voltage
240V
Circuit Breaker Type
QO
Phase
1
Short Circuit Current Rating
10kA
Max. No. of Tandem Breakers
4
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Standards
UL Listed
For Use With
QO Mini Circuit Breaker
Finish
Baked Enamel
Electrical Connection
lugs
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
Primary/Ambient Air Temp.
-5°C || 40°C
Ground Bar Kit
grounding bar included (not installed)
Wiring Configuration
3-wire
Number Of Circuits
8

Description

Load Center Qo Mlo 240V 125A 1Ph 4Sp, Included Enclosure Cover Surface Cover
