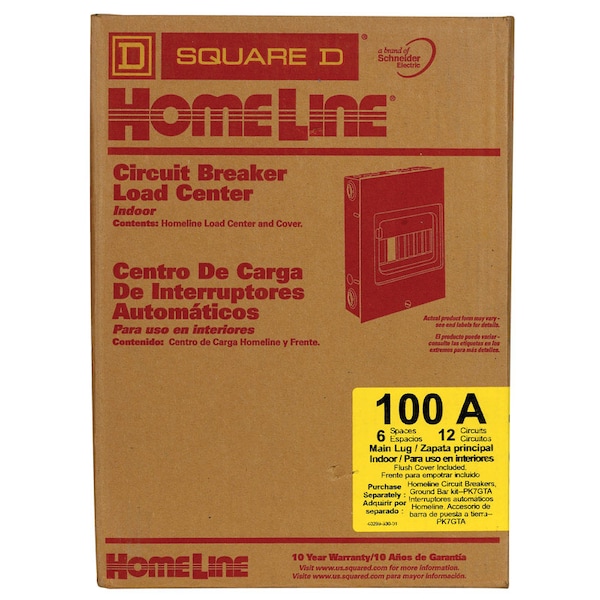

Square D Load Center, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase HOM612L100FCP - main

CAD Viewer & Download Files

Load Center, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # HOM612L100FCP

  • Zoro # G2919661

CAD Available
product price: $39.89
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HOM612L100FCP
Zoro #
G2919661
UPC #
47569071249
Country of Origin
Mexico

Dimensions

Height
319 mm
Width
226 mm
Depth
97 mm
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10 kA
Included Enclosure Cover
Flush Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Number of Poles
6
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Surface Finish
baked enamel Gray
Product Certifications
UL listed file E-6294
Line Rated Current
100 A
Wiring Configuration
3-wire
Number Of Tandem Circuit Breakers
6
Number Of Circuits
12
CAD Available
Yes

Description

Homeline plug-on neutral load centers offer time-savings for plug-on neutral combination arc fault (CAFI) and dual function circuit breaker installation. Innovative, split neutrals are designed to save you time and wire, allowing plug-on neutral circuit breakers to connect directly to the neutral bar without the pigtail. Coupled with the state-of-the-art design, neutral bars are now fully-distributed, accepting plug-on neutral circuit breakers on any space.


  • • Homeline 100 amp 6-space 12-circuit indoor flush mount main lug load center
  • • Faster installation fewer connections
  • • Saves wire fully distributed split neutral bar
  • • Frees gutter space no pigtails
  • • Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
  • • Faster and easier wiring all spaces accept tandems
