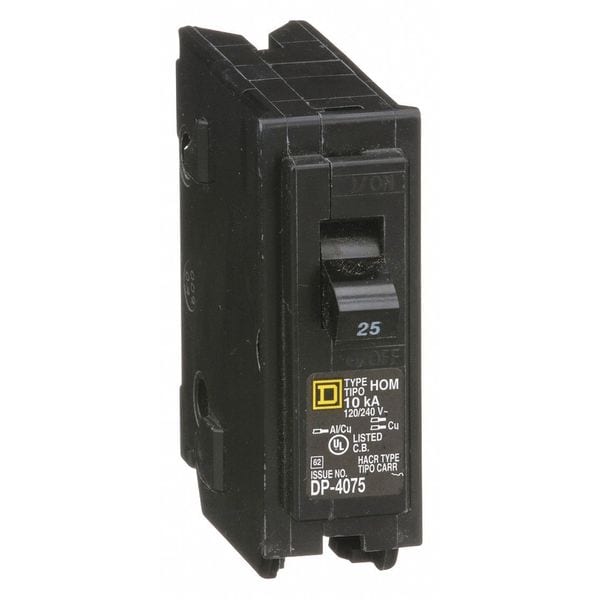

Square D Miniature Circuit Breaker, HOMELINE Series, 25A, 1 Pole, 120V AC, 10kA at 120V AC HOM125 - main

Miniature Circuit Breaker, HOMELINE Series, 25A, 1 Pole, 120V AC, 10kA at 120V AC

  • Mfr # HOM125

  • Zoro # G2437434

CAD Available
product price:  $11.39
/ea

Key Features

CAD Drawing
Series
HOMELINE
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HOM125
Zoro #
G2437434
UPC #
785901065463
Country of Origin
Mexico

Dimensions

Frame Size
100A/HOM
Width
1 in
Depth
2.98 in
Height
3.13 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Length
3.13 in

Details

CAD Available
Yes
Item
Miniature Circuit Breaker
Series
HOMELINE
Amps
25A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120V AC
Trip Type
Standard
Terminal Connection
Clamp
DC Voltage Rating
Not Rated
Standards
CSA Certified, HACR, Switching Duty rated, UL Listed
For Use With
Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Application
HACR rated Applications
Features
Mercury Free
Min. Operating Temp.
77 Degrees F
Max. Operating Temp.
104 Degrees F
Compatible Panelboard/Load Center Series
HOM
Voltage
120/240 VAC

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
