CAD Viewer & Download Files

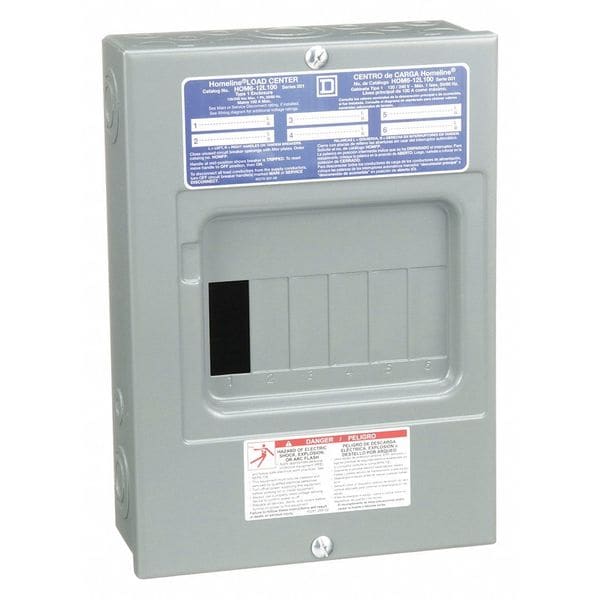

Load Center, 6 Spaces, 100A Amps, 120/240V AC
Mfr # HOM612L100S
Zoro # G0880512
CAD Available
product price: $39.25
/eaKey Features
CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HOM612L100S
Zoro #
G0880512
UPC #
785901061199
Country of Origin
United States
Dimensions
Height
12.56 in
Width
8.91 in
Depth
4-1/4 in
Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8
Description
Load Center, Number of Spaces 6, Amps 100 A, Voltage 120/240V AC, Circuit Breaker Type HOM, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 6, Phase 1, Series HOM, Height 12.56 in, Width 8.91 in, Depth 4 1/4 in, For Use With Square D HOM Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 10kA, Enclosure NEMA Rating 1, Cover Attachment Style Screw On, Cover Closure Method Door Handle
