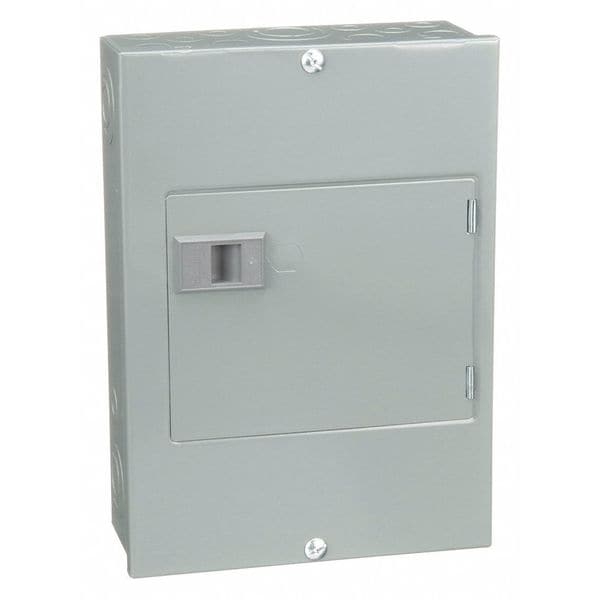

Square D Load Center, 8 Spaces, 100A Amps, 120/240V AC QO816L100DS - main

CAD Viewer & Download Files

Load Center, 8 Spaces, 100A Amps, 120/240V AC

  • Mfr # QO816L100DS

  • Zoro # G3032784

CAD Available
product price: $78.35
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO816L100DS
Zoro #
G3032784
UPC #
785901785743
Country of Origin
Mexico

Dimensions

Height
12.56 in
Width
8.91 in
Depth
3-3/4 in
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
Circuit Breaker Type
QO
Max. No. of Tandem Breakers
8
Short Circuit Current Rating
10kA
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Recommended Ground Bar Kit
1D374
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
Standards
RoHS Compliant, UL Listed
Min. Operating Temp.
23 Degrees F
Max. Operating Temp.
104 Degrees F
Enclosure Surface Finish
Enamel
Cover Attachment Style
Screw On
Cover Closure Method
Lift-Off
Location
Indoor
For Use With
Square D QO Circuit Breakers
Color
Gray
Feed Location
Top/Bottom
Electrical Connection
lugs
Ground Bar Kit
grounding bar (ordered separately)
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Wiring Configuration
3-wire
Number Of Circuits
16
Primary/Ambient Air Temp.
-5°C || 40°C
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, and is UL rated.
