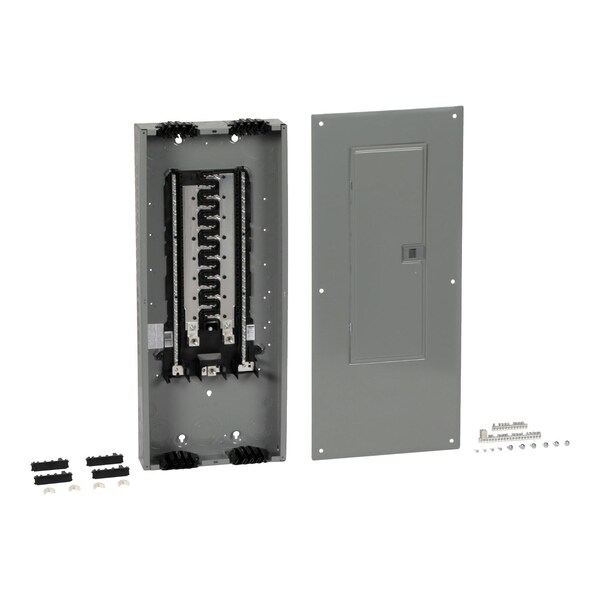

Square D Load Center, HOM, 30 Spaces, 225A, 120/240V AC, PoN Convertible Main Lug, 1 Phase HOM3060L225PQGC - main

Load Center, HOM, 30 Spaces, 225A, 120/240V AC, PoN Convertible Main Lug, 1 Phase

  • Mfr # HOM3060L225PQGC

  • Zoro # G3306332

product price:  $201.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
PoN Convertible Main Lug
Number of Spaces
30
Amps
225A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HOM3060L225PQGC
Zoro #
G3306332
UPC #
-
Country of Origin
United States

Dimensions

Height
858 mm
Width
362 mm
Depth
95 mm
Max. Wire Size
250 kcmil aluminium/copper
Min. Wire Size
AWG 4

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Lug
Number of Spaces
30
Amps
225A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
HOM
Included Enclosure Cover
Combination
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Max. No. of Tandem Breakers
30
Circuit Breaker Type
Homeline
For Use With
Homeline Plug in, Plug-on Neutral Circuit Breaker, convertible with QOM2 MB, Homeline load center accessories
Finish
Baked Enamel
Ground Bar Kit
grounding bar included (not installed); grounding bar 1 ) || qwik grip assembly kit 1 )
Number Of Circuits
60
Wiring Configuration
3-wire
Primary/Ambient Air Temp.
-5°C || 40°C

Description

Load center,Homeline,225A,120/240 V,
