Shop SQUARE D

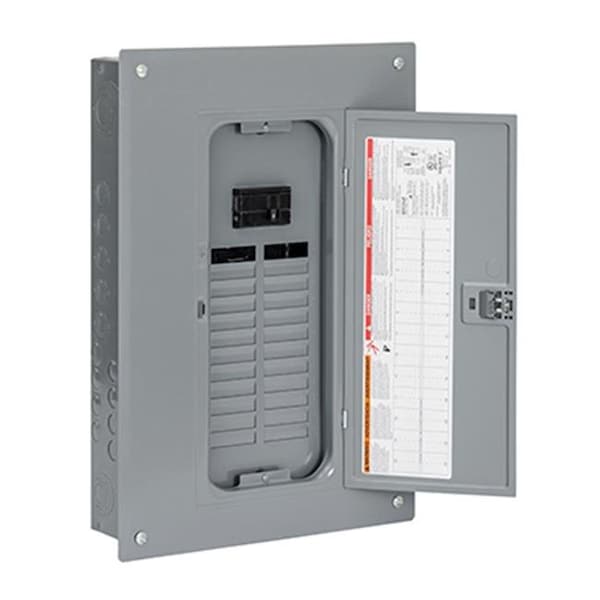

Load Center, QO, 24 Spaces, 100A, PoN Convertible Main Breaker, 1 Phase

  • Mfr # 192260

  • Zoro # G003999261

product price:
$
234.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
24
Amps
100 A
Phase
1
Short Circuit Current Rating
22kA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
192260
Zoro #
G003999261
UPC #
785901978480
Country of Origin
United States

Dimensions

Height
531 mm
Width
362 mm
Depth
5.4 in
Max. Wire Size
AWG 2/0 aluminium/copper
Min. Wire Size
AWG 6

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
24
Amps
100 A
Phase
1
Short Circuit Current Rating
22kA
Series
QO
Included Enclosure Cover
Combination
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Finish
Baked Enamel
Standards
UL Listed
Max. No. of Tandem Breakers
10
Electrical Connection
lugs
Number Of Circuits
34
Tightening Torque
Cover 20 lb.in
Primary/Ambient Air Temp.
-5°C || 40°C
Ground Bar Kit
grounding bar (ordered separately)
Wiring Configuration
3-wire

Description

Features
  • Qo 100a main breaker installed load center
  • Plug on neutral, combination cover for flush or surface mount, 24 space circuit 24 single poles.
  • Dimension - 23.4 x 15.8 x 5.4 in.
  • Item weight - 21 lbs.
