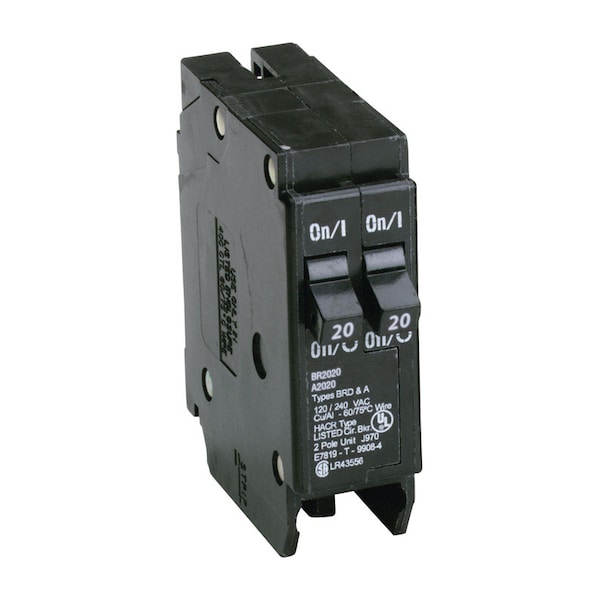

Circuit Breaker, BR Series, 20A, 2 Pole, 120V AC, 10kA
- Mfr # BR2020
- Zoro # G8623698
CAD Available
product price:
$
31.95
/ea
Key Features
CAD Drawing
Series
BR
Amps
20 A
Number of Poles
2
AC Voltage Rating
120V AC
Circuit Breaker Type
Tandem
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BR2020
- Zoro #
- G8623698
- UPC #
- 786676370257
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- BR
- Width
- 2.90 in
- Depth
- 1 in
- Height
- 2-1/2 in
- Max. Wire Size
- 4 AWG (Cu/Al)
- Min. Wire Size
- 14 AWG (Cu/Al)
- Wire Size
- #14-4 AWG Cu/Al
Details
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- BR
- Amps
- 20 A
- Number of Poles
- 2
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Tandem
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Common
- DC Voltage Rating
- Not Rated
- For Use With
- Type BR Loadcenters
- Interrupt Rating
- 10 kA
- Certifications
- UL 489
- Compliances
- Federal Specifications Classification W-C375
Description
Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Cutler-Hammer 20/20 amp 1 inch duplex type BR circuit breaker is also known as tandem breaker. Tandem breakers are convenient for adding circuits to a full load center and are sometimes used to reduce the physical size of the load center. This a non-circuit limiting breaker. The BR tandem line of breakers is intended for replacement purposes on load centers made prior to 1968.
- • Twin 20/20
- • Non Circuit Limiting
- • For replacement Purposes only
- • No Rejection Tab
- • 1" Format
- • 3/4" Format
