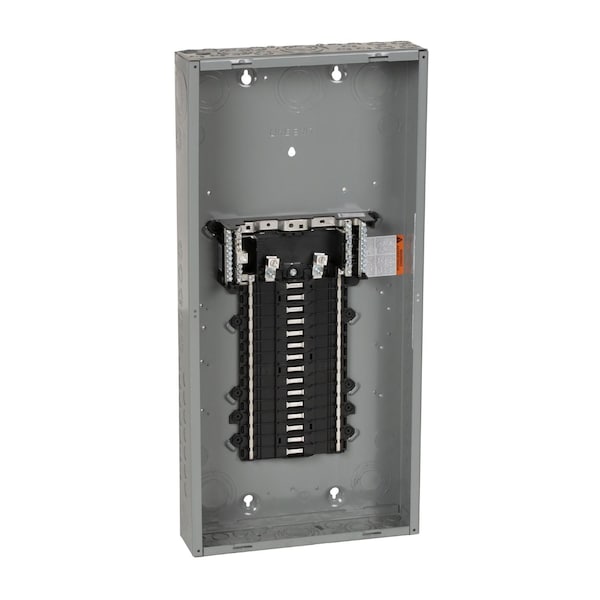

Square D Load Center, QO, 30 Spaces, 125A, 120/240V AC, PoN Convertible Main Lug, 1 Phase QO130L125PG - main

CAD Drawings

Download CAD Files

Load Center, QO, 30 Spaces, 125A, 120/240V AC, PoN Convertible Main Lug, 1 Phase

  • Mfr # QO130L125PG

  • Zoro # G3306603

CAD Available
product price:  $135.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
PoN Convertible Main Lug
Number of Spaces
30
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
65kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO130L125PG
Zoro #
G3306603
UPC #
-
Country of Origin
United States

Dimensions

Height
758 mm
Width
362 mm
Depth
95 mm
Max. Wire Size
AWG 2/0 aluminium/copper
Min. Wire Size
AWG 6

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Lug
Number of Spaces
30
Amps
125A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
65kA
Series
QO
Included Enclosure Cover
Order Separately
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Max. No. of Tandem Breakers
4
Standards
UL listed file E-6294
Finish
Baked Enamel
Primary/Ambient Air Temp.
-5°C || 40°C
Ground Bar Kit
grounding bar included (not installed)
Wiring Configuration
3-wire
Number Of Circuits
34
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || Cover 20 lb.in
Electrical Connection
lugs
CAD Available
Yes

Description

Load Center,QO,125A,120/240V,1PH,Mn
