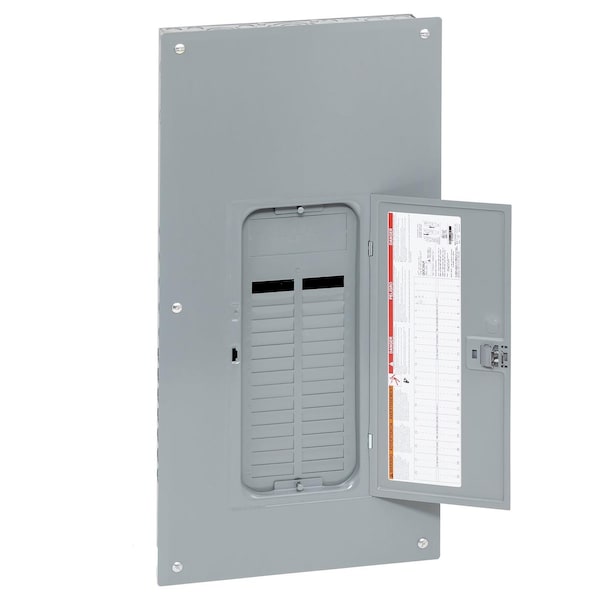

Square D Load Center, QO, 30 Spaces, 200A, 120/240V AC, Convertible Main Lug, 1 Phase QO130L200PGC - main

CAD Drawings

Download CAD Files

Load Center, QO, 30 Spaces, 200A, 120/240V AC, Convertible Main Lug, 1 Phase

  • Mfr # QO130L200PGC

  • Zoro # G200489695

CAD Available
product price: $209.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Number of Spaces
30
Amps
200A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QO130L200PGC
Zoro #
G200489695
UPC #
785901976448
Country of Origin
United States

Dimensions

Height
29.88 in
Width
14.25 in
Depth
3-3/4 in
Max. Wire Size
250 kcmil aluminium/copper
Min. Wire Size
AWG 6

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
200A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
Short Circuit Current Rating
65kA
Max. No. of Tandem Breakers
10
Series
QO
Included Enclosure Cover
Combination
Recommended Surface Cover
Included
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Special Features
Mercury Free
Min. Operating Temp.
23 Degrees F
Location
Indoor
Enclosure Surface Finish
Baked Enamel Gray
Standards
RoHS Compliant, UL Listed
Color
Gray
Max. Operating Temp.
104 Degrees F
For Use With
Square D QO Circuit Breakers
Recommended Ground Bar Kit
Included
Weight
12.470 kg
Finish
Baked Enamel
Ground Bar Kit
grounding bar included (not installed)
Tightening Torque
main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || main lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper
Electrical Connection
lugs
Number Of Circuits
40
Primary/Ambient Air Temp.
-5°C || 40°C
Wiring Configuration
3-wire
Box Number
9
Product Certifications
UL Listed
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides 200A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, combination cover, and UL rated.
