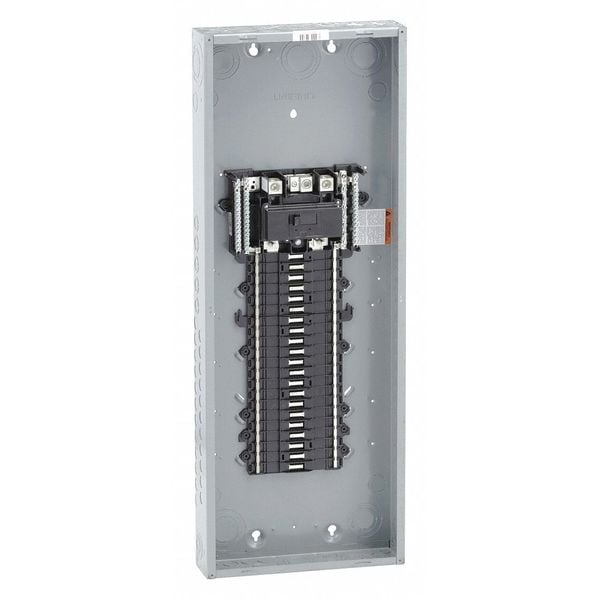

Load Center, QO, 42 Spaces, 200A, 120/240V AC, Convertible Main Circuit Breaker, 1 Phase
Mfr # QO142M200P
Zoro # G6186537
CAD Available
product price: $442.59
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Circuit Breaker
Number of Spaces
42
Voltage
120/240V AC
Short Circuit Current Rating
22kA
Height
37.98 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
QO142M200P
Zoro #
G6186537
UPC #
785901324386
Country of Origin
Mexico
Dimensions
Height
37.98 in
Width
14.25 in
Depth
3-3/4 in
Max. Wire Size
300 kcmil aluminium/copper
Min. Wire Size
AWG 4
Description
Load Center, Number of Spaces 42, Amps 200 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Order Separately, Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker, Max. No. of Tandem Breakers 0, Phase 1, Series QO, Height 37.98 in, Width 14.25 in, Depth 3 3/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Copper, Short Circuit Current Rating 22kA, Enclosure NEMA Rating 1, Recommended Flush Cover 1D441
