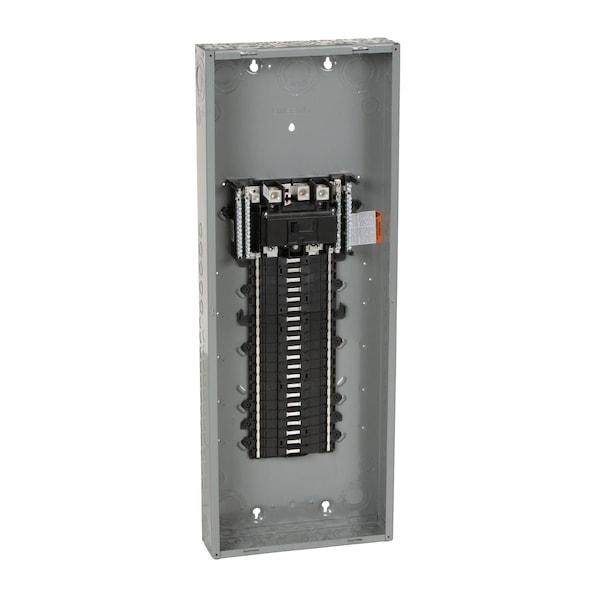

Square D Load Center, QO, 42 Spaces, 200A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase QO142M200PCVP - main

CAD Drawings

Download CAD Files

Load Center, QO, 42 Spaces, 200A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase

  • Mfr # QO142M200PCVP

  • Zoro # G3309570

CAD Available
product price:  $1,538.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
42
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QO142M200PCVP
Zoro #
G3309570
UPC #
-
Country of Origin
Mexico

Dimensions

Height
965 mm
Width
362 mm
Depth
95 mm
Max. Wire Size
300 kcmil aluminium/copper
Min. Wire Size
AWG 4

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
42
Amps
200A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
Series
QO
Included Enclosure Cover
Combination
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Max. No. of Tandem Breakers
0
Standards
UL Listed
Finish
Baked Enamel
Tightening Torque
Cover 20 lb.in
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
52
Electrical Connection
lugs
Wiring Configuration
3-wire
Ground Bar Kit
grounding bar (ordered separately); circuit-breaker 3 ) 1P 20 A 120 V AC downstream || circuit-breaker 2 ) 2P 30 A 120/240 V AC downstream || load center 1 ) 42P 200 A 120/240 V AC
CAD Available
Yes

Description

QO LoadCTR,MainBrk.,200A,1PH-3W,42SP
