CAD Drawings
Download CAD Files

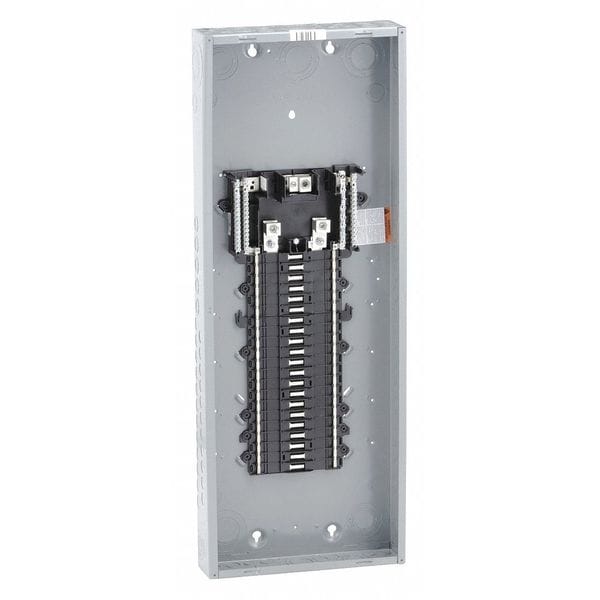

Load Center, QO, 42 Spaces, 225A, 120/240V AC, Convertible Main Lug, 1 Phase
Mfr # QO142L225PG
Zoro # G6086771
CAD Available
product price: $284.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
42
Voltage
120/240V AC
Circuit Breaker Type
QO
Short Circuit Current Rating
65kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QO142L225PG
Zoro #
G6086771
UPC #
785901267430
Country of Origin
Mexico
Dimensions
Height
37.98 in
Width
14.25 in
Depth
3-3/4 in
Max. Wire Size
300 kcmil aluminium/copper
Min. Wire Size
AWG 6
Description
Load Center, Number of Spaces 42, Amps 225 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Order Separately, Main Circuit Breaker or Main Lug Convertible, Main Lug, Max. No. of Tandem Breakers 0, Phase 1, Series QO, Height 37.98 in, Width 14.25 in, Depth 3 3/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Copper, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 1, Recommended Flush Cover 1D441, Recommended Ground Bar Kit Included
