  9. Load Center, QO, 6 Spaces, 100A, 240V, Main Lug, 1 Phase

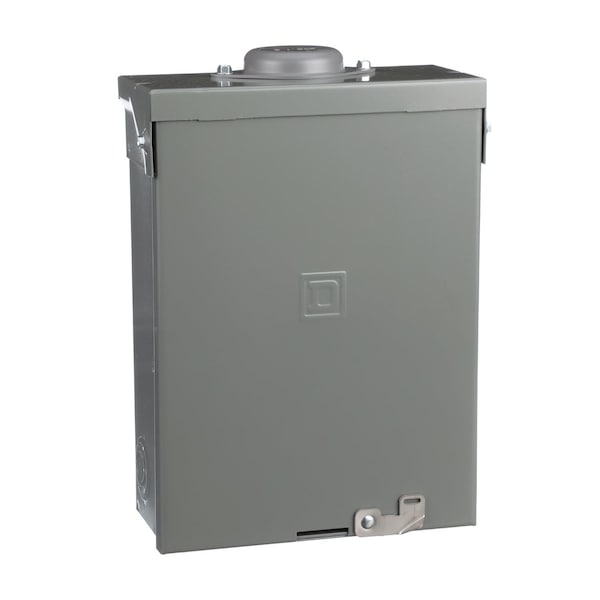

Square D Load Center, QO, 6 Spaces, 100A, 240V, Main Lug, 1 Phase QO612L100RBCU - main

Load Center, QO, 6 Spaces, 100A, 240V, Main Lug, 1 Phase

  • Mfr # QO612L100RBCU

  • Zoro # G0570906

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
240V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100RBCU
Zoro #
G0570906
UPC #
785901626381
Country of Origin
Mexico

Dimensions

Height
321 mm
Width
226 mm
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
240V
Phase
1
Short Circuit Current Rating
10kA
Series
QO
Included Enclosure Cover
Surface Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Copper
Circuit Breaker Type
QO
Standards
UL Listed
Max. No. of Tandem Breakers
6
Finish
Baked Enamel
For Use With
QO Mini Circuit Breaker
Wiring Configuration
3-wire
Ground Bar Kit
grounding bar (ordered separately)
Number Of Circuits
12
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Electrical Connection
lugs
Primary/Ambient Air Temp.
-5°C || 40°C

Description

Loadctr Qo Mlo 240V 100A 1Ph 6Sp Cu Bus
