Shop SQUARE D
See all product information

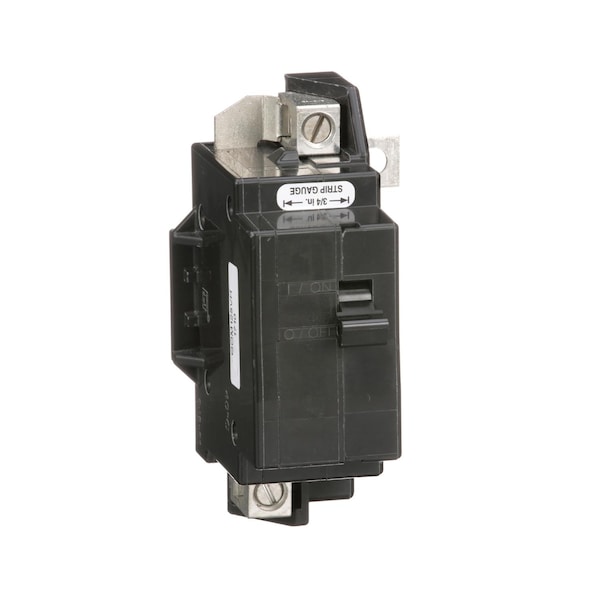

Miniature Circuit Breaker, QO Series, 90A, 2 Pole, 240V AC, 22kA at 120/240V AC
Mfr # QOM90VH
Zoro # G0566959
product price:Â $106.99
/ea
Free Shipping & Returns
Key Features
Series
QO
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Main Breaker
Phase
1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- QOM90VH
- Zoro #
- G0566959
- UPC #
- 785901054733
- Country of Origin
- Mexico
Dimensions
- Frame Size
- QOM1
- Width
- 88 mm
- Depth
- 127 mm
- Height
- 129 mm
- Min. Wire Size
- 4 AWG (Cu/Al)
- Max. Wire Size
- 2/0 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 90 A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Main Breaker
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Standards
- UL Listed, CSA
- Interrupt Rating
- 22 kA at 120/240V AC, 10 kA
- For Use With
- QO Load Centers, HOMELINE Load Centers
Description
Miniature Circuit Breaker 240V 90A, Series QOM
