  9. Load Center, QO, 8 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase

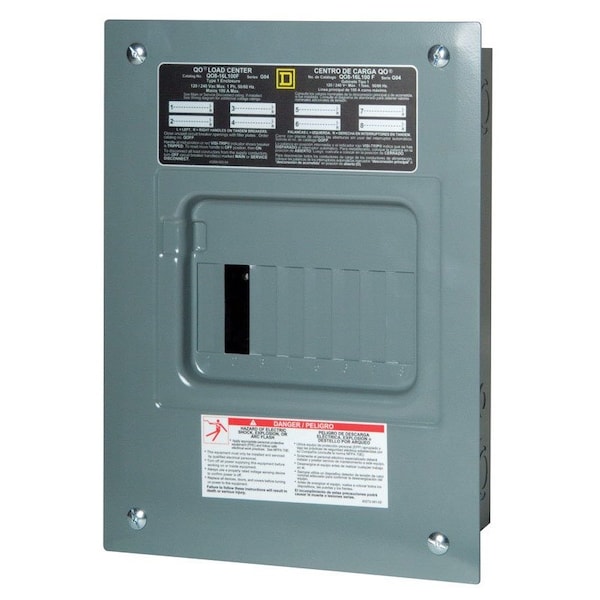

Square D Load Center, QO, 8 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase QO816L100FCP - main

Load Center, QO, 8 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase

  • Mfr # QO816L100FCP

  • Zoro # G205266260

product price: $85.79
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Fixed Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO816L100FCP
Zoro #
G205266260
UPC #
47569804755
Country of Origin
United States

Dimensions

Height
319 mm
Width
226 mm
Depth
95 mm
Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Fixed Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
QO
Included Enclosure Cover
Flush Cover
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Max. No. of Tandem Breakers
8
Standards
UL Listed
Finish
Baked Enamel
Electrical Connection
lugs
Number Of Circuits
16
Primary/Ambient Air Temp.
-5°C || 40°C
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Ground Bar Kit
grounding bar (ordered separately)
Wiring Configuration
3-wire

Description

The Square D QO 100 amp 8-space 16-circuit fixed main lugs flush mount indoor load center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged thermoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.


  • • Single and three phase
  • • 3/4 inch circuit breaker width
  • • 30 to 400 amps 2 to 42 circuits
  • • Indoor and outdoor versions
  • • Separate flush or surface mount covers
  • • Full complement of accessories
