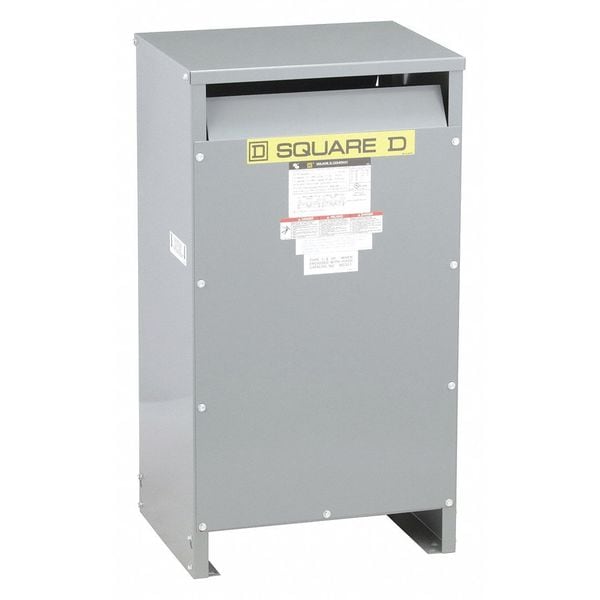

Low Voltage Distribution Transformer, 25 kVA, NEMA 2, 120/240V AC, 240/480V AC

  • Mfr # EE25S3H
  • Zoro # G3448837
CAD Available
product price:
$
3,021.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

CAD Drawing
Input Voltage - Transformer
240V AC, 480V AC
Output Voltage
120V AC, 240V AC
Power Rating
25 kVA
Phase
Single
Mounting - Transformer
Floor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EE25S3H
Zoro #
G3448837
UPC #
785901558934
Country of Origin
Korea, Republic of
CAD Available
Yes
Item
Low Voltage Distribution Transformer
Input Voltage - Transformer
240V AC, 480V AC
Output Voltage
120V AC, 240V AC
Power Rating
25 kVA
Phase
Single
Mounting - Transformer
Floor
Hz - Electrical
60 Hz
NEMA Enclosure Rating
2
IP Rating
IP14
Outdoor Rated - Transformer
No
Winding Material
Aluminum
Color
Gray
Temperature Rise
150 Degrees C
Phase - Electrical
Single
Enclosure Finish
Powder Coated
Temp. Rise
150 Degrees C
Winding Material - Transformer
Aluminum
Enclosure Rating
NEMA 2
Standards
REACH Regulation, RoHS
Enclosure Material
Steel
Output Voltage - Transformer
120V AC, 240V AC
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
VA Rating - Transformer
25 kVA
Voltage Function - Transformer
Step Down
Insulation Max. Temp.
220 °C
Sound Level
42 dB
Frequency
60 Hz
Input Voltage
240V AC, 480V AC
Voltage Function
Step Down
Wire Color
Gray

Dimensions

Overall Height
37 in
Overall Width
20 in
Overall Depth
16 in
Height
37 in
Manufacturers Warranty Length
1 yr
Knockout Size - Transformer
No Knockout
Width
20 in
Depth
16 in

Description

Dry Type Power Distribution Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, 240V AC, VA Rating - Transformer 25 kVA, Mounting - Transformer Floor, Outdoor Rated - Transformer No, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 150 Degrees C, Enclosure Rating NEMA 2, IP Rating IP14
